IBM Infosphere Master Data Management v11.4 Installation Manual (IBM MDM v11.4 Installation)

I would like to share my experience with the installation of MDM v 11.4 on a Windows workstation(Development machine)

Before you begin:
Make sure you have

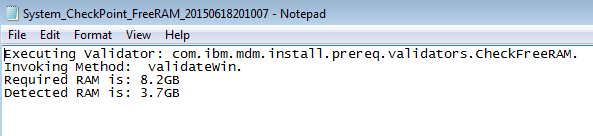

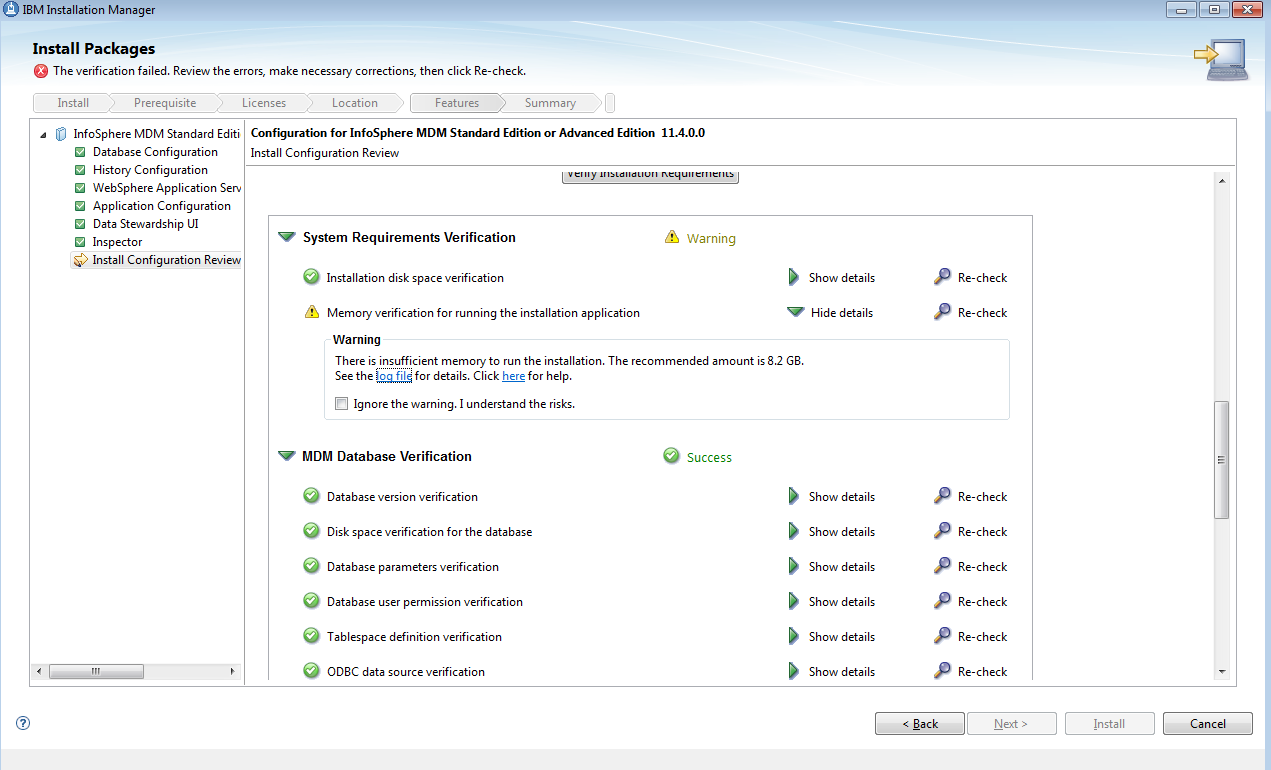

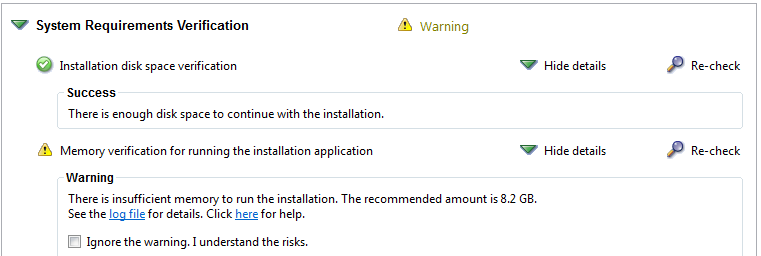

  1. A machine with 8+ GB RAM(12GB recommended as during installation I noticed that the Physical Memory usage is very high and my available Physical memory went down to 74MB)
This was my OS information, but 8gb ram is too low.
2) Admin Rights (Elevated rights alone with regedit access is not sufficient, as the process creates new users etc).
It causes trouble during DB2 installation and you have to do a lot of steps manually to make it working.
3) Disable Antivirus
4) Disable Windows Firewall


Downloads:
Supporting Software
eAssembly Description
eAssembly part number
Additional Information
DB2
IBM InfoSphere Master Data Management V11.4 - IBM DB2 Enterprise Server Edition V10.5 Multiplatform Multilingual eAssembly
CRTR2ML
Activation Kit:
IBM DB2 Enterprise Server Edition - Restricted Use - Quick Start and Activation V10.5.0.1 for Linux, UNIX and Windows Multilingual (CIPH4ML )


WebSphere Application Server - Network Deployment
IBM InfoSphere Master Data Management V11.4 - IBM WebSphere Application Server Network Deployment V8.5.5 Multiplatform Multilingual eAssembly
CRTR6ML
http://www-01.ibm.com/support/docview.wss?uid=swg24038472&aid=1
Rational Application Developer for WebSphere Software
IBM InfoSphere Master Data Management V11.4 -IBM Rational Application Developer for WebSphere Software V9.1 Multilingual Multiplatform eAssembly
CRTR3ML
Activation Kit:
IBM Rational Application Developer for WebSphere Software V9.1 Activation Kit Multiplatform


IBM InfoSphere Master Data Management Standard & Advanced Edition Mulitplatform Multilingual V11.4
Part 1 CN1UWML
Part 2 CN1UXML
Part 3 CN1UYML
Part 4 CN1UZML
Part 5 CN1V0ML
Part 6 CN1V1ML

IBM InfoSphere Master Data Management Workbench Standard & Advanced Edition Mulitplatform Multilingual V11.4
Part 1 CN1V2ML
Part 2 CN1V3ML
Part 3 CN1V4ML


IBM WebSphere Application Server Fix Pack v8.5.5.2(Fix pack 8.5.5.1 and 8.5.5.2 both are needed)
Fix packs should be available from fix central.


9.1 ->RAD
10.5->DB2
11.4 ->MDM Adv or Std
Network Deployment ->WAS 8.5.5


Fix packs:
Workbench->MDM Workbench

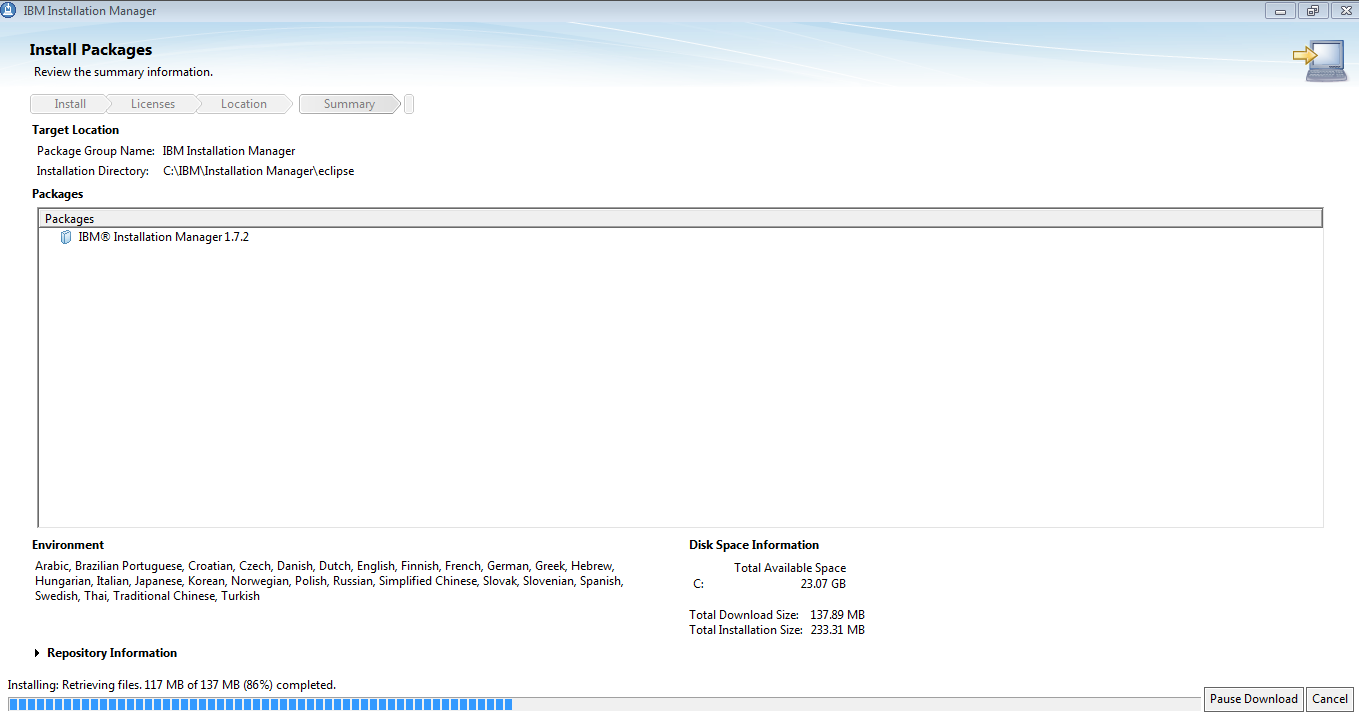

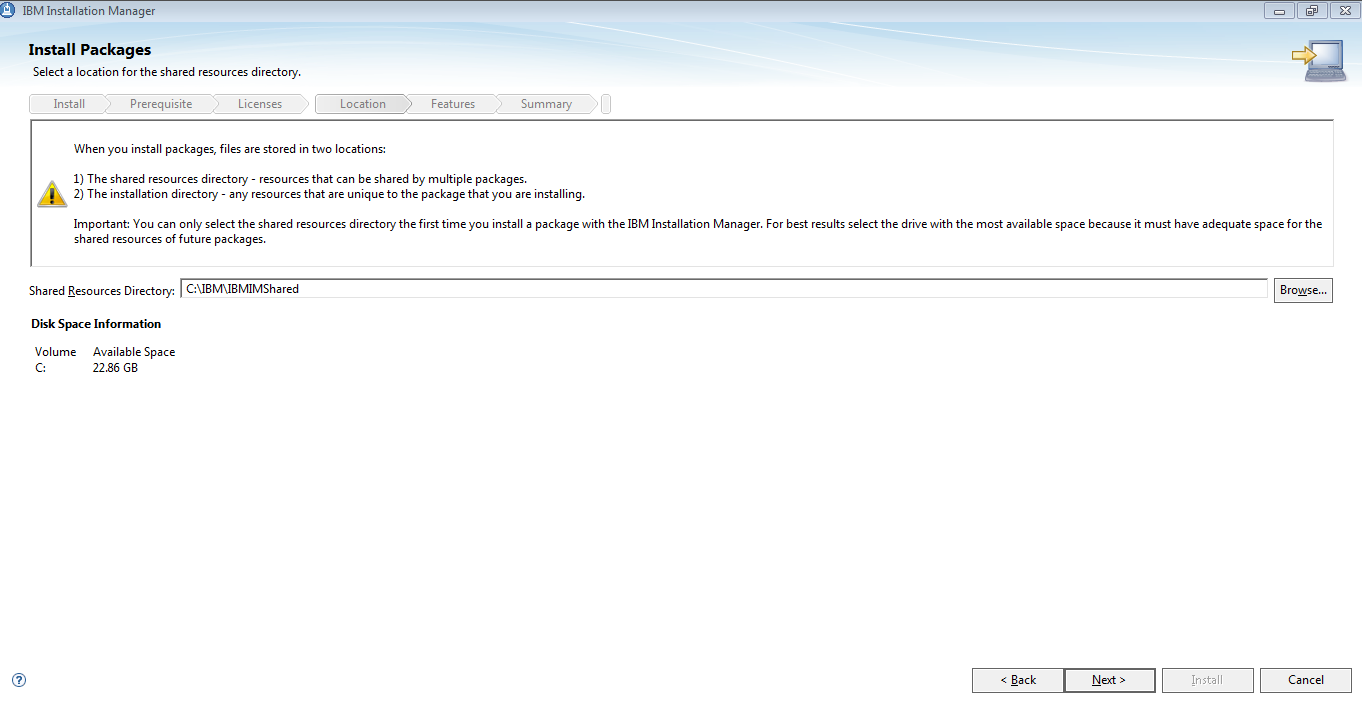

To install Installation Manager (1.7.2)
1)Extract disk1 of MDM_STD_ADV_11.4_ML_1
Goto:
C:\MDM Installables\11.4\MDM_STD_ADV_11.4_ML_1\MDM\disk1\installer_win32_win32_x86_64
Right Click install(blue icon) ->Run as Administrator


Click Next ->Click Install

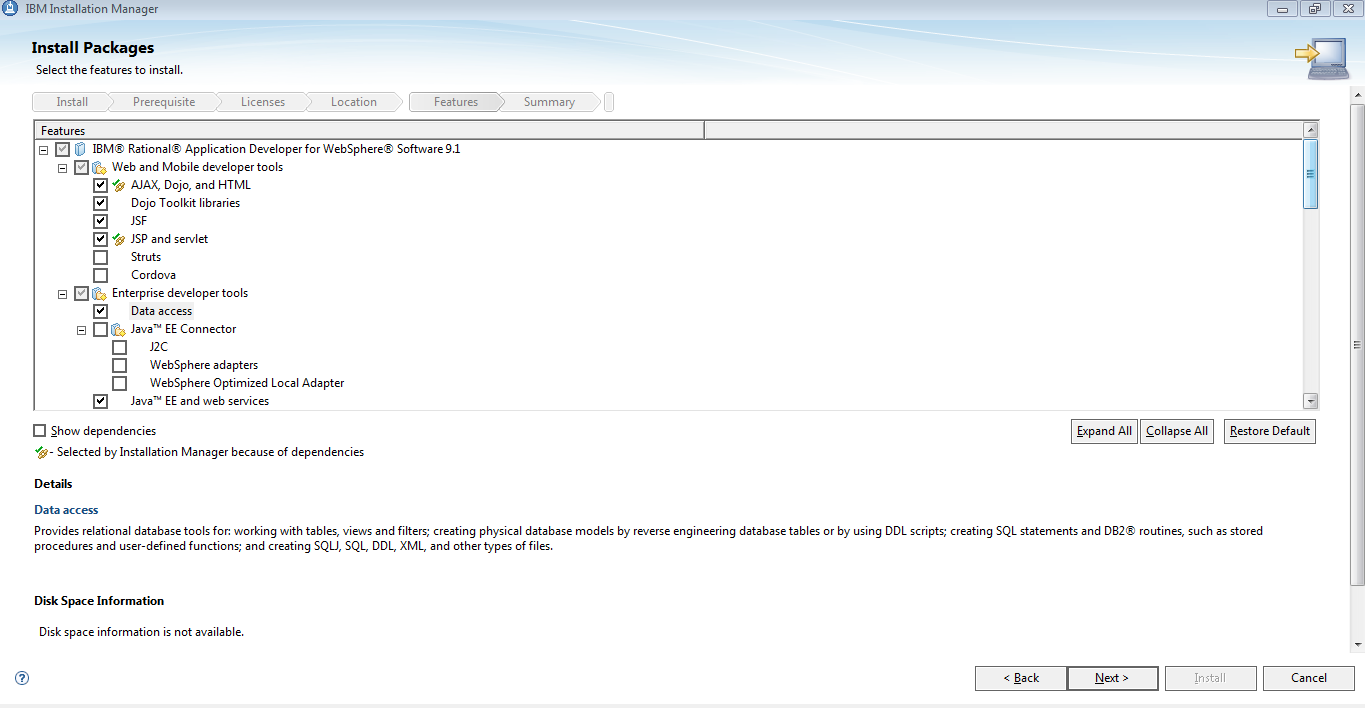

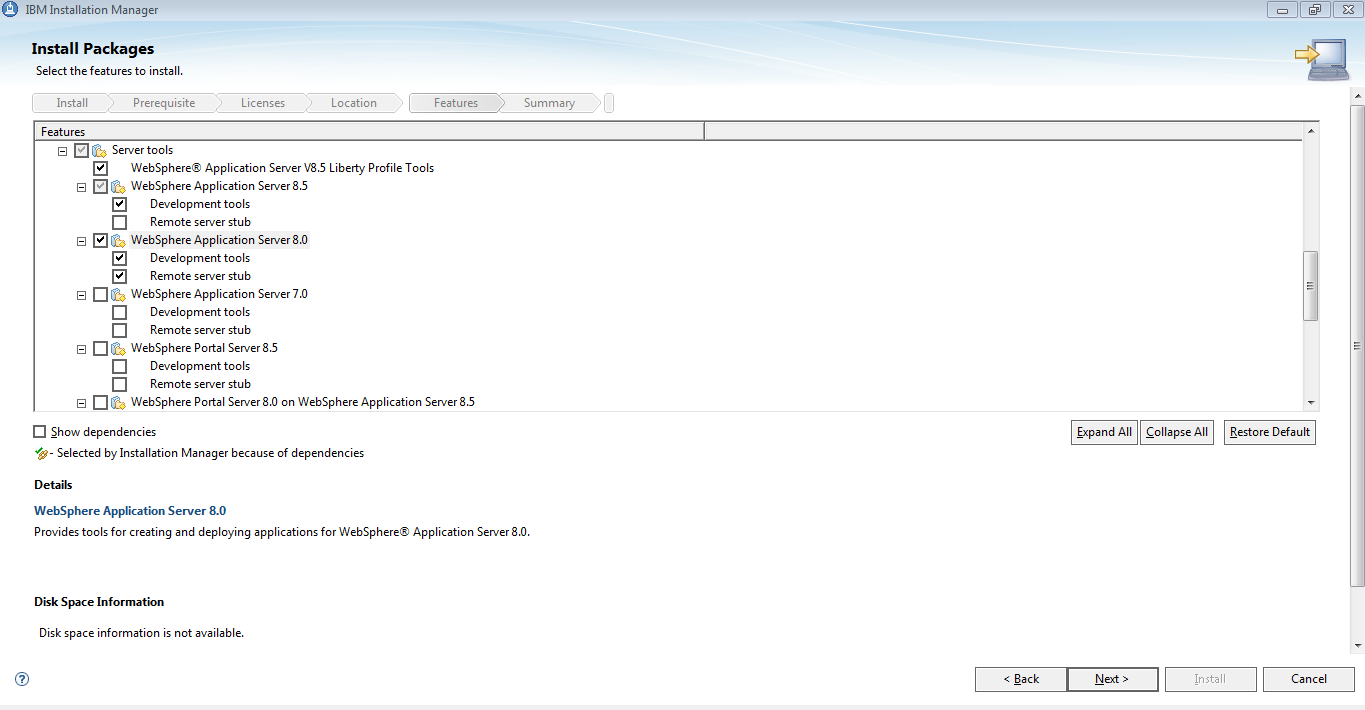

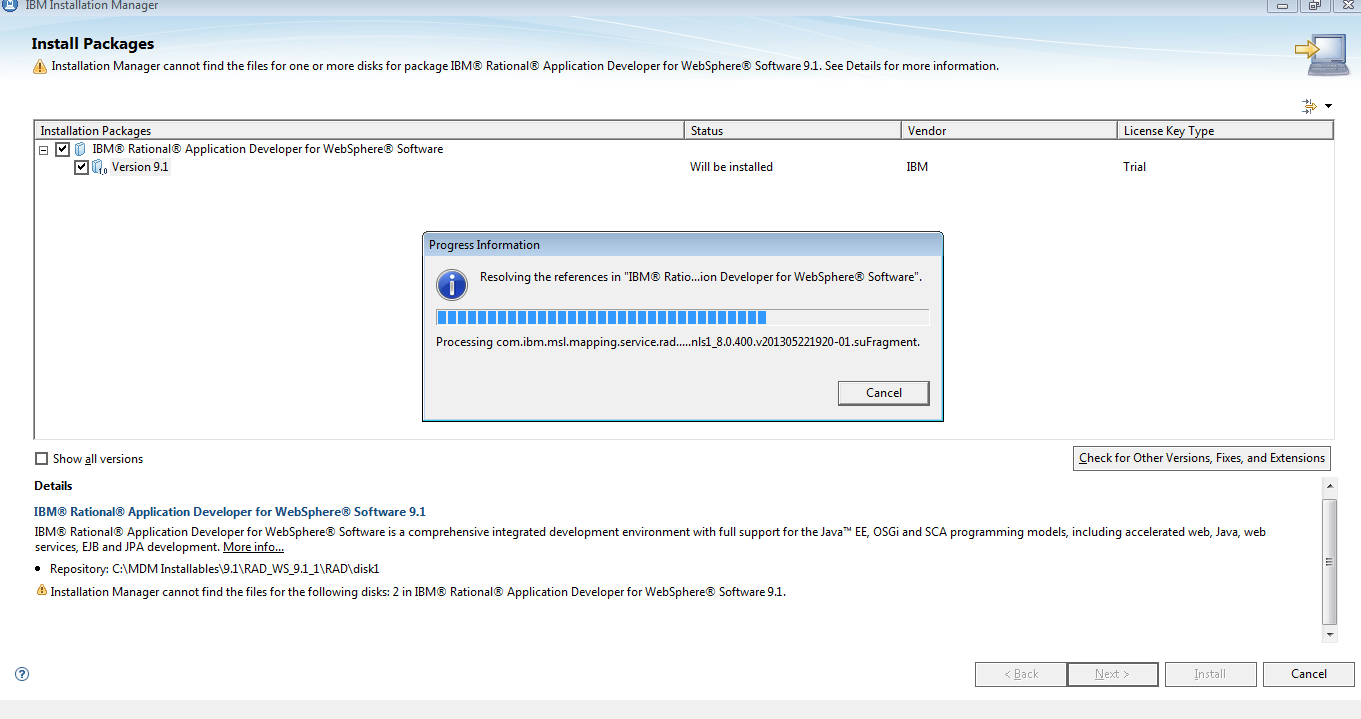

Next Step is to Install RAD ( 9.1)
From Installation Manager

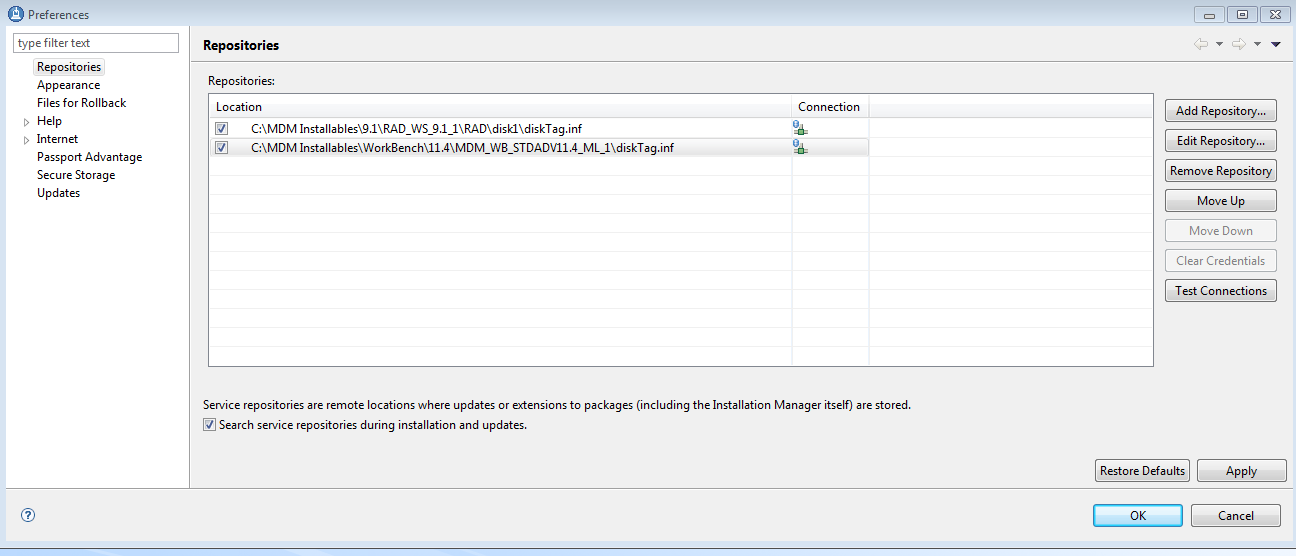

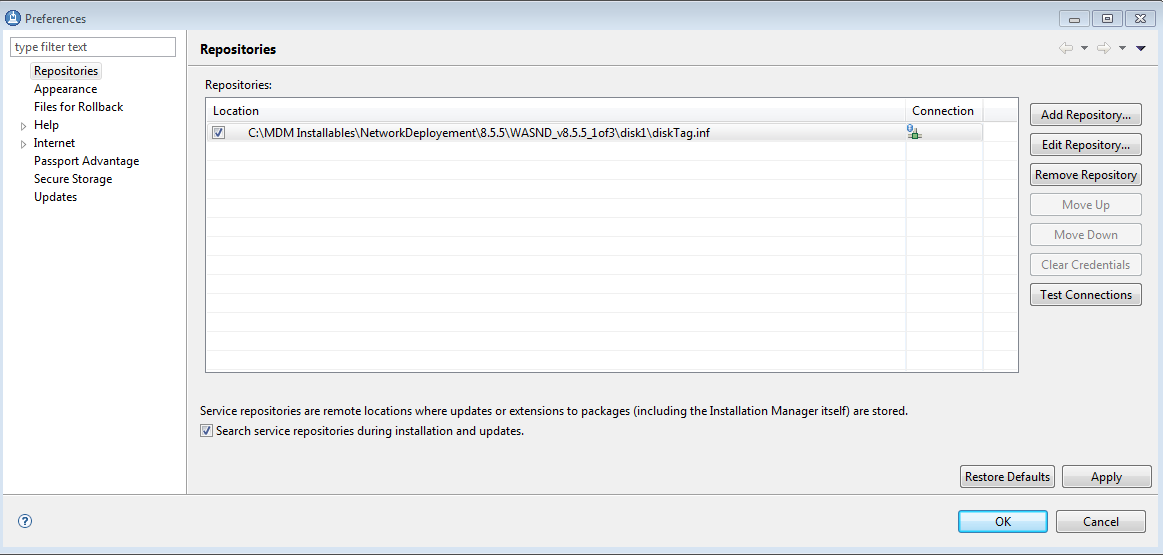

File ->preferences->AddRepository
Provide the path to the diskTag.inf in disk1

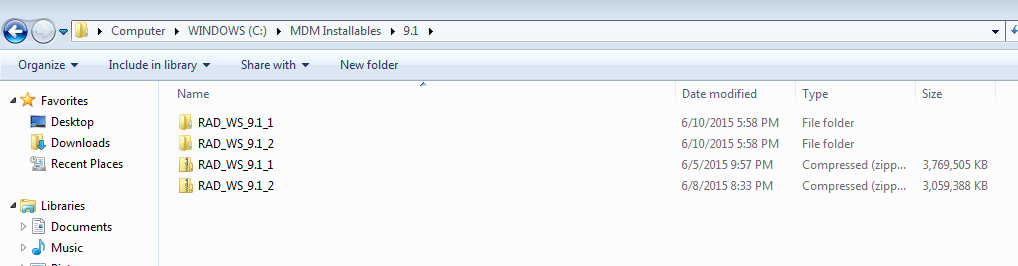

C:\MDM Installables\9.1\RAD_WS_9.1_1\RAD\disk1








Edit the path








Scroll Down:

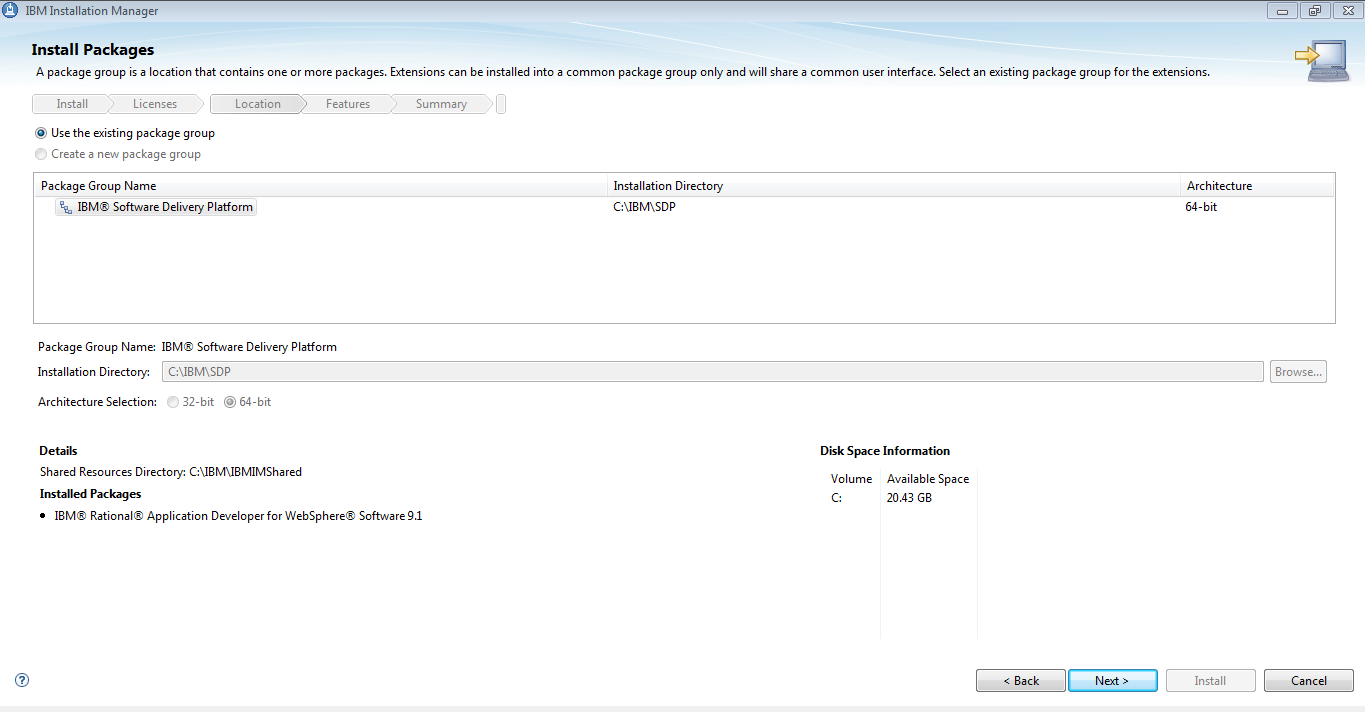

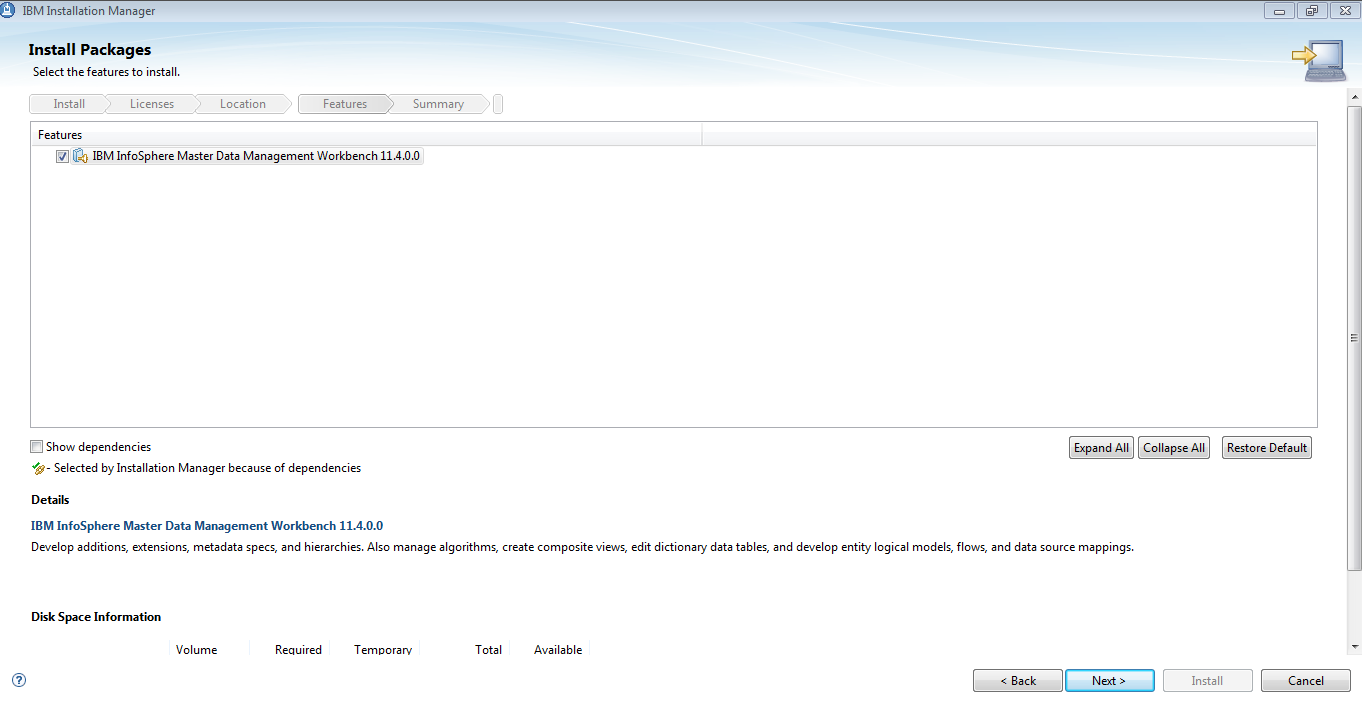

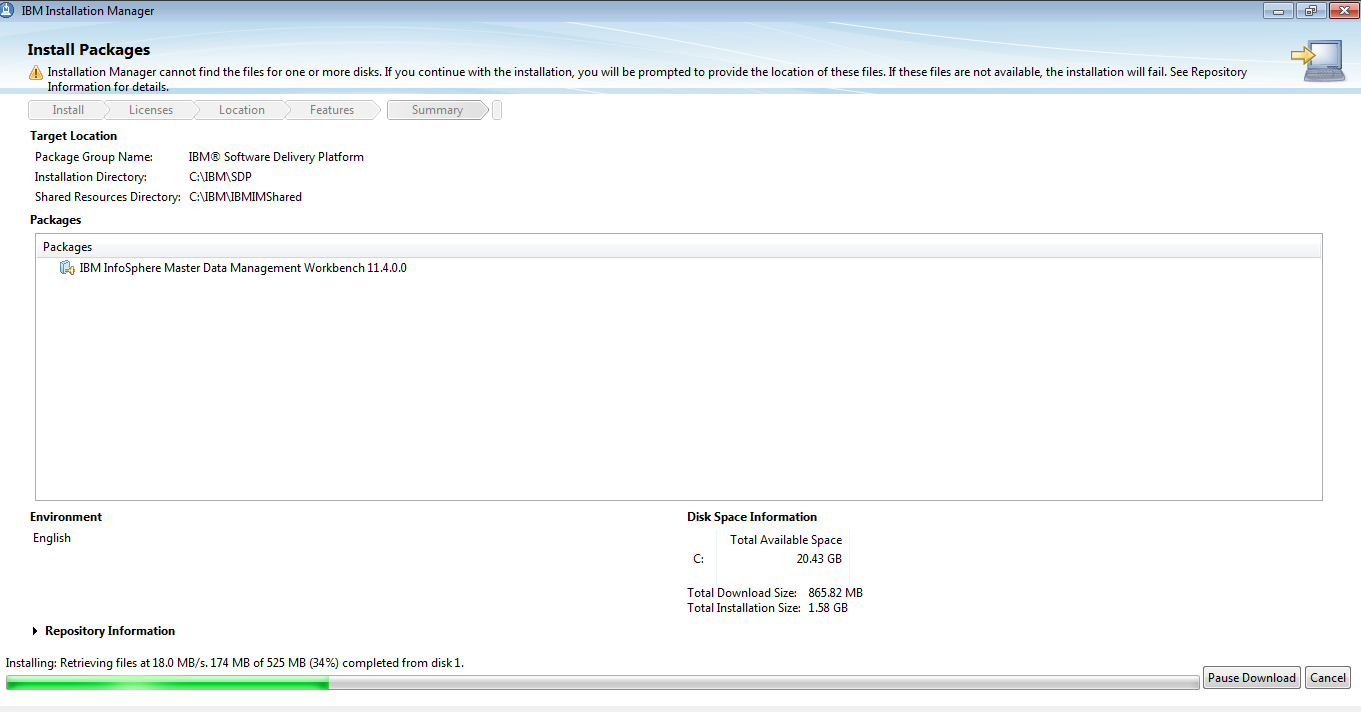

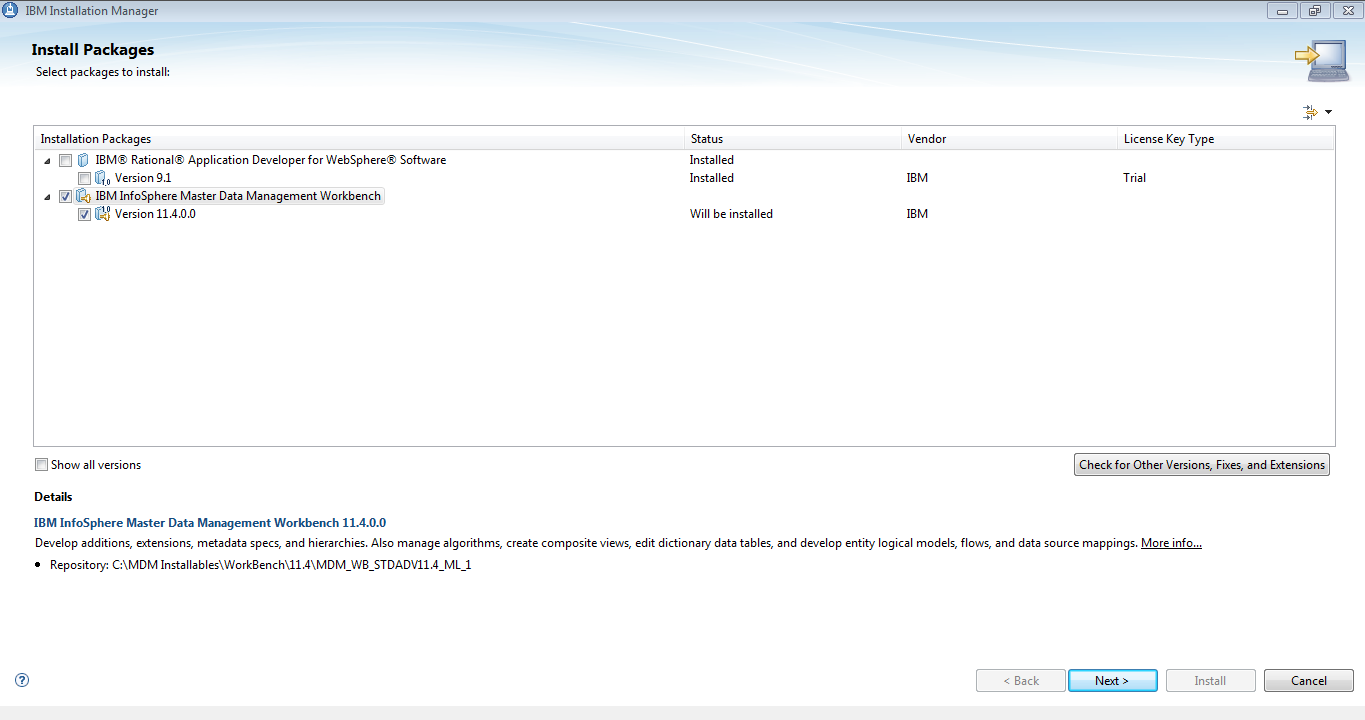

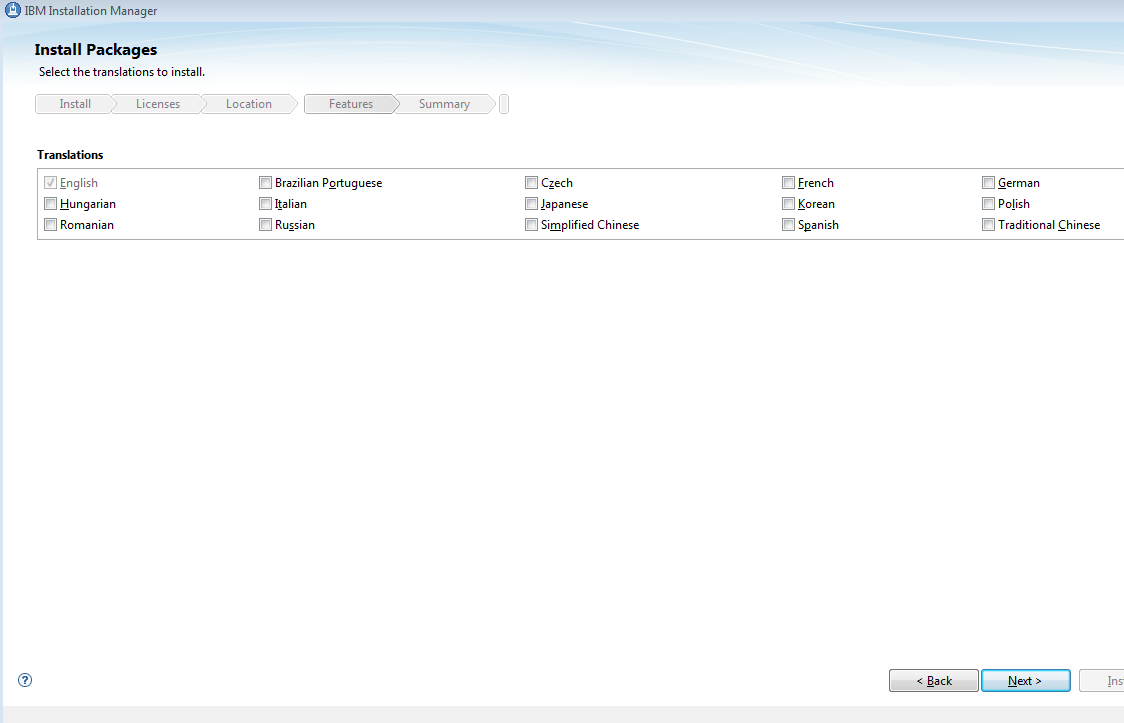

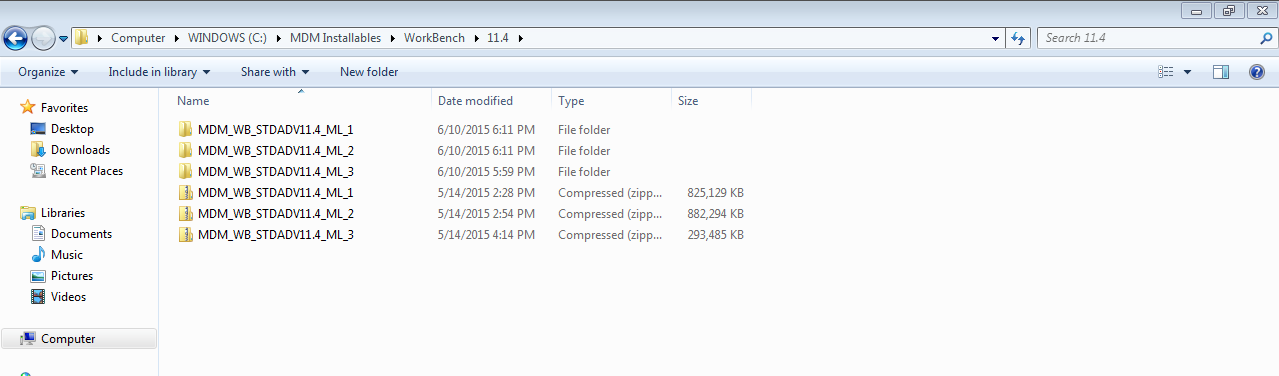

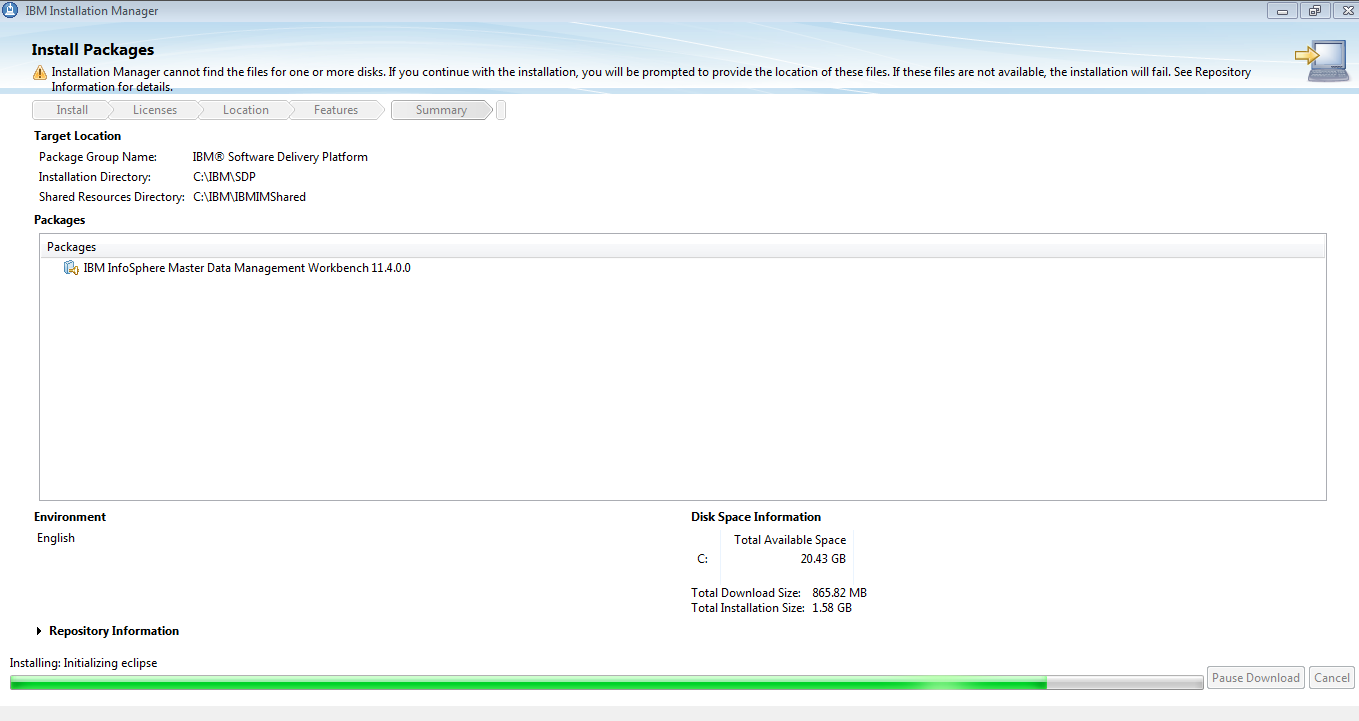

Installing  MDM Workbench v 11.4












You will get the prompt for disk2 and disk3 of workbench.

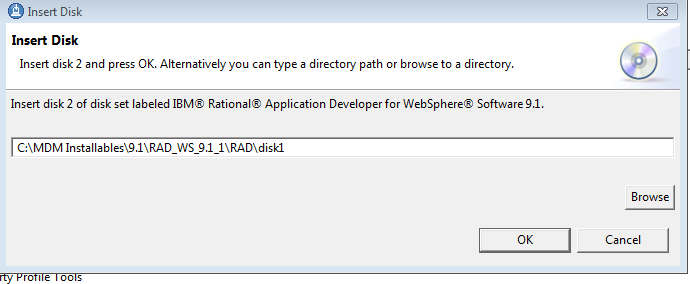

For some reason, it asked me for the disk2 of RAD also.Pls provide it when you are being asked ☺.

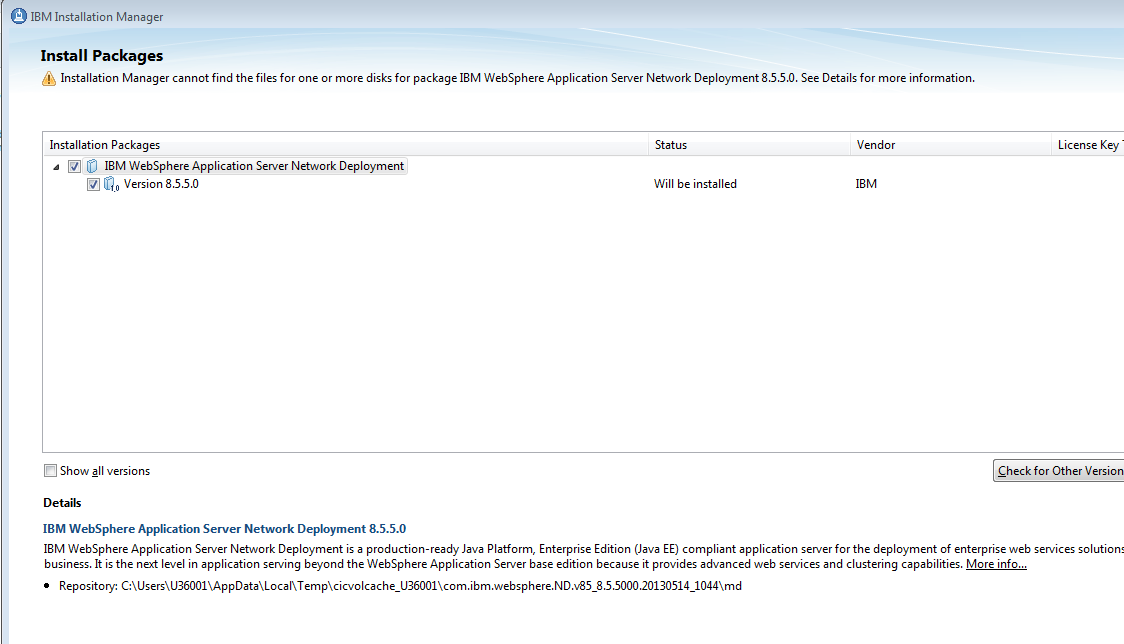

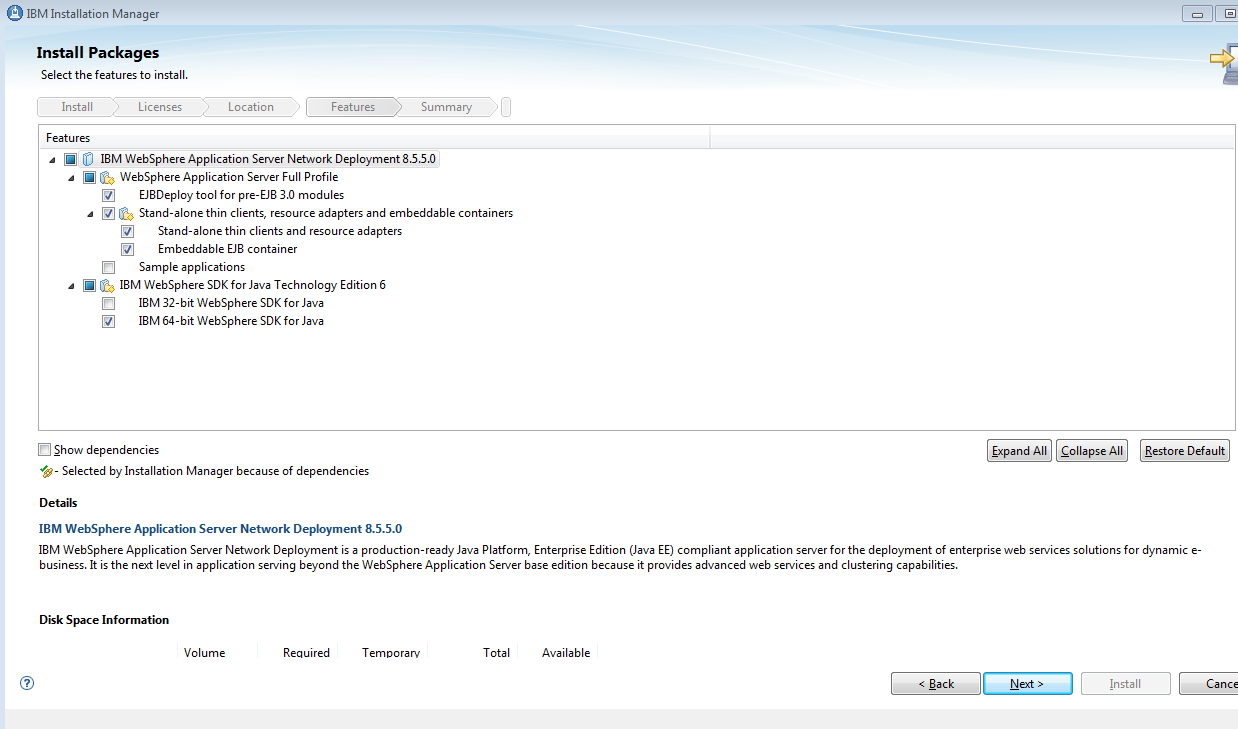

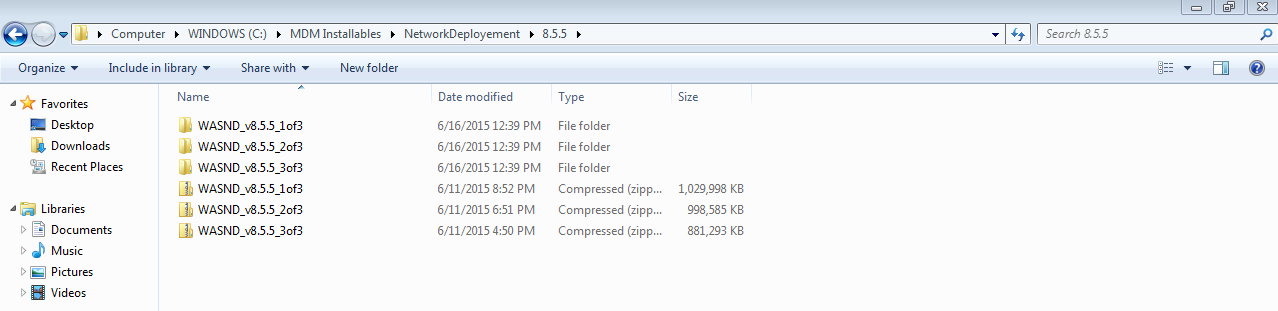

IBM WAS ND 8.5.5


Change path:




Default:


Say OK and click Install
It will ask for disk3 also.

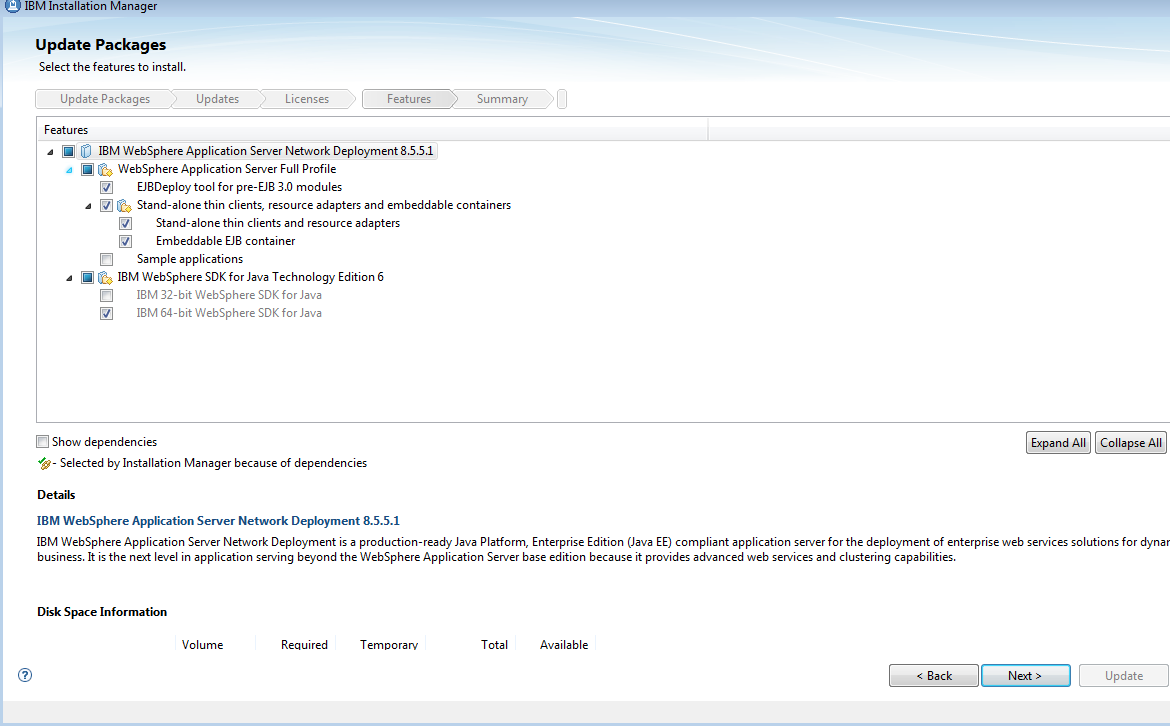

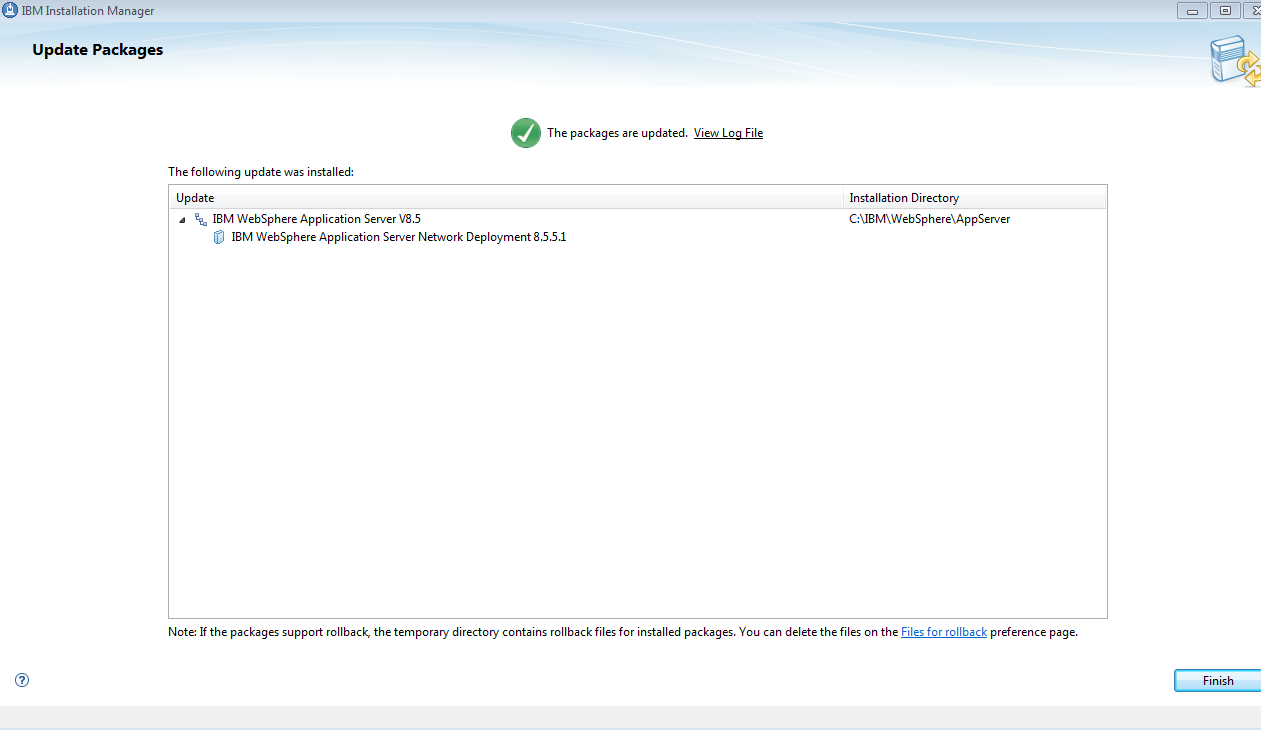

Update WAS FP level to 8.5.5.01

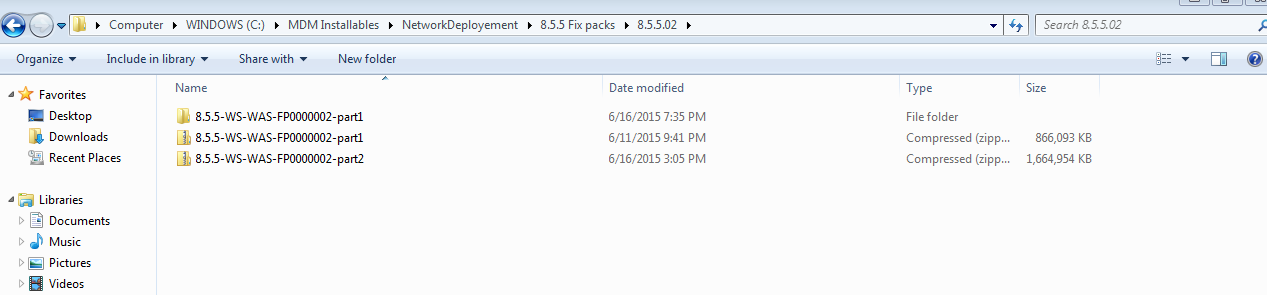

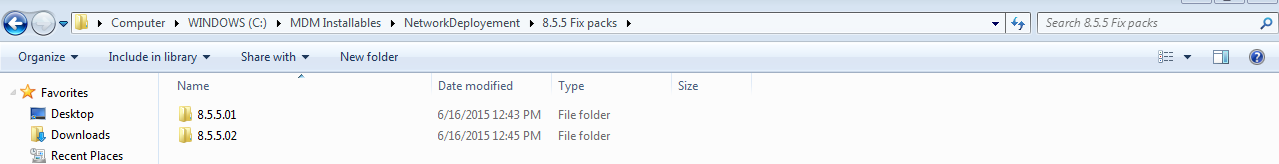

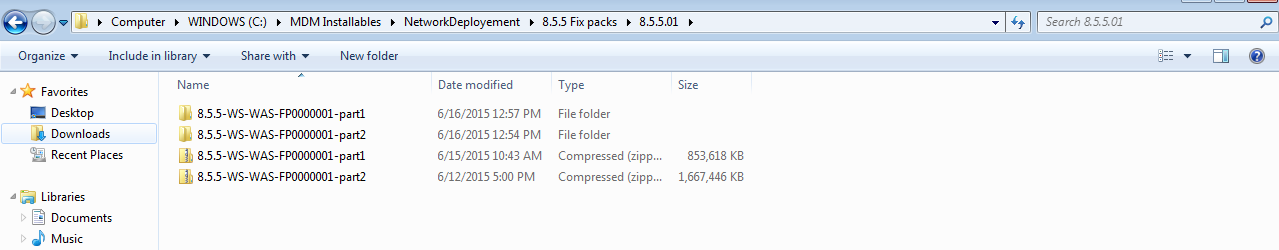

Merge the two folders into one :

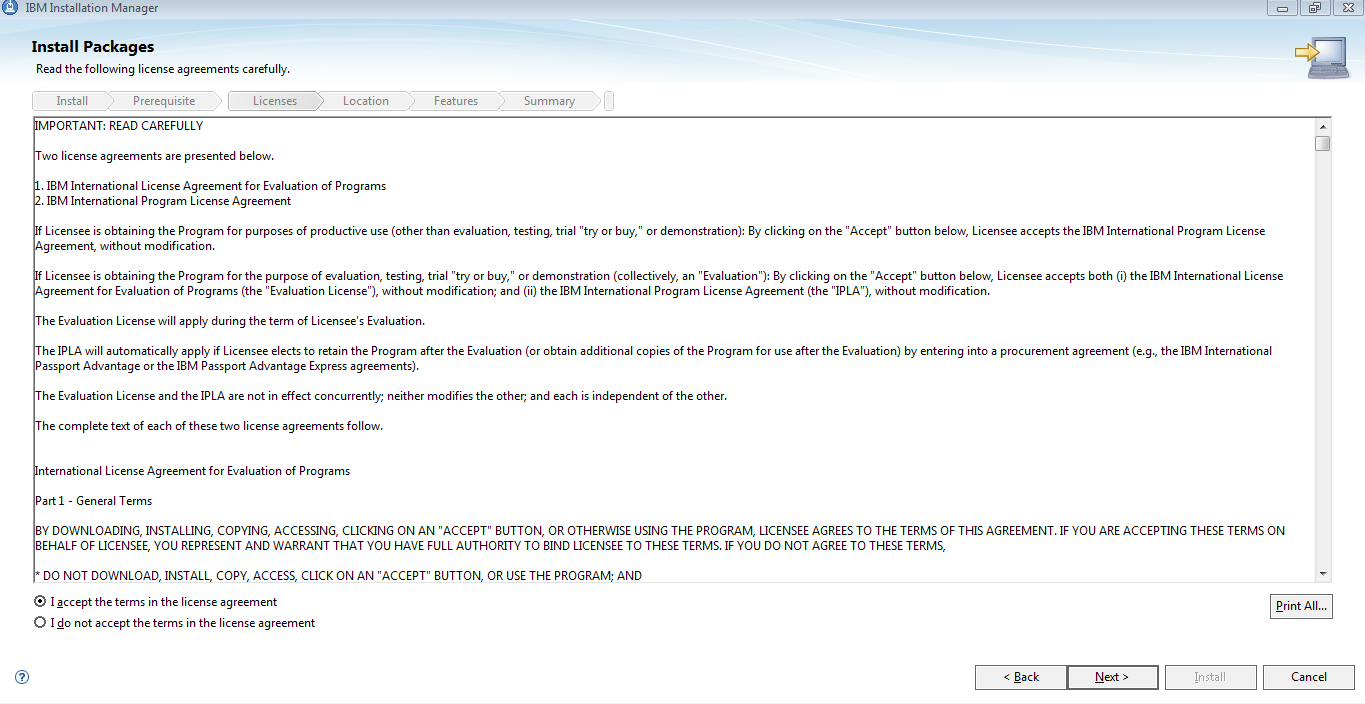

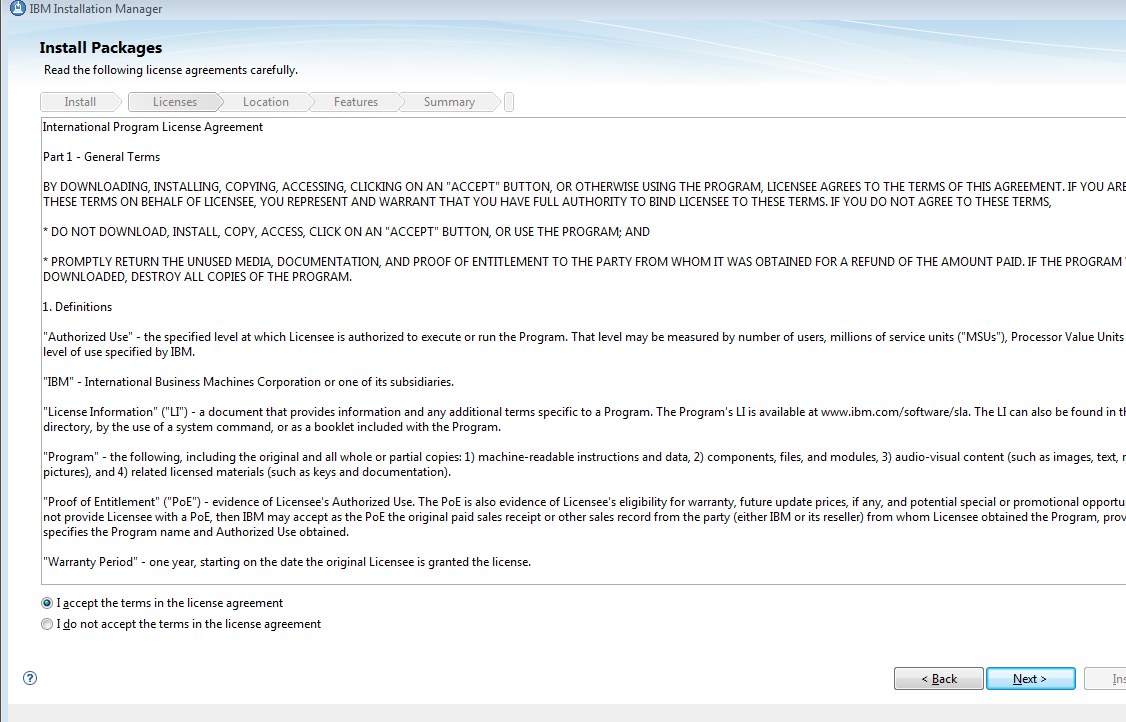

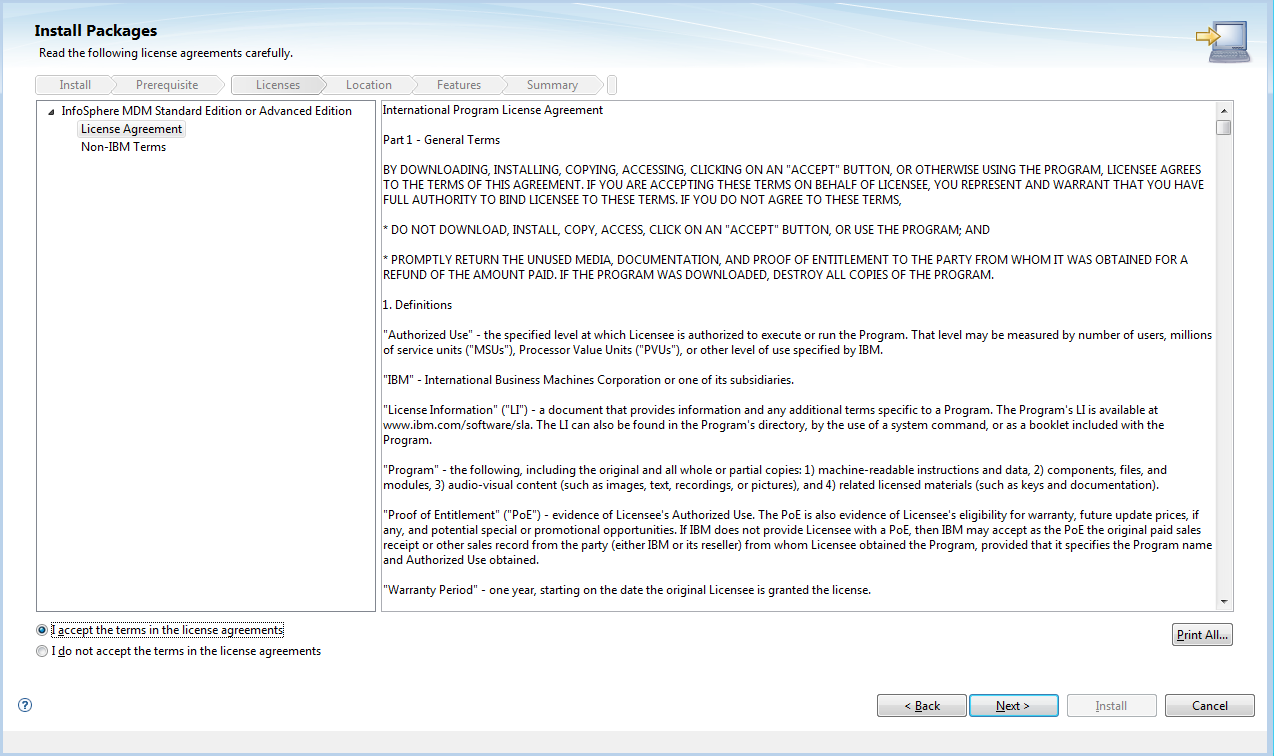

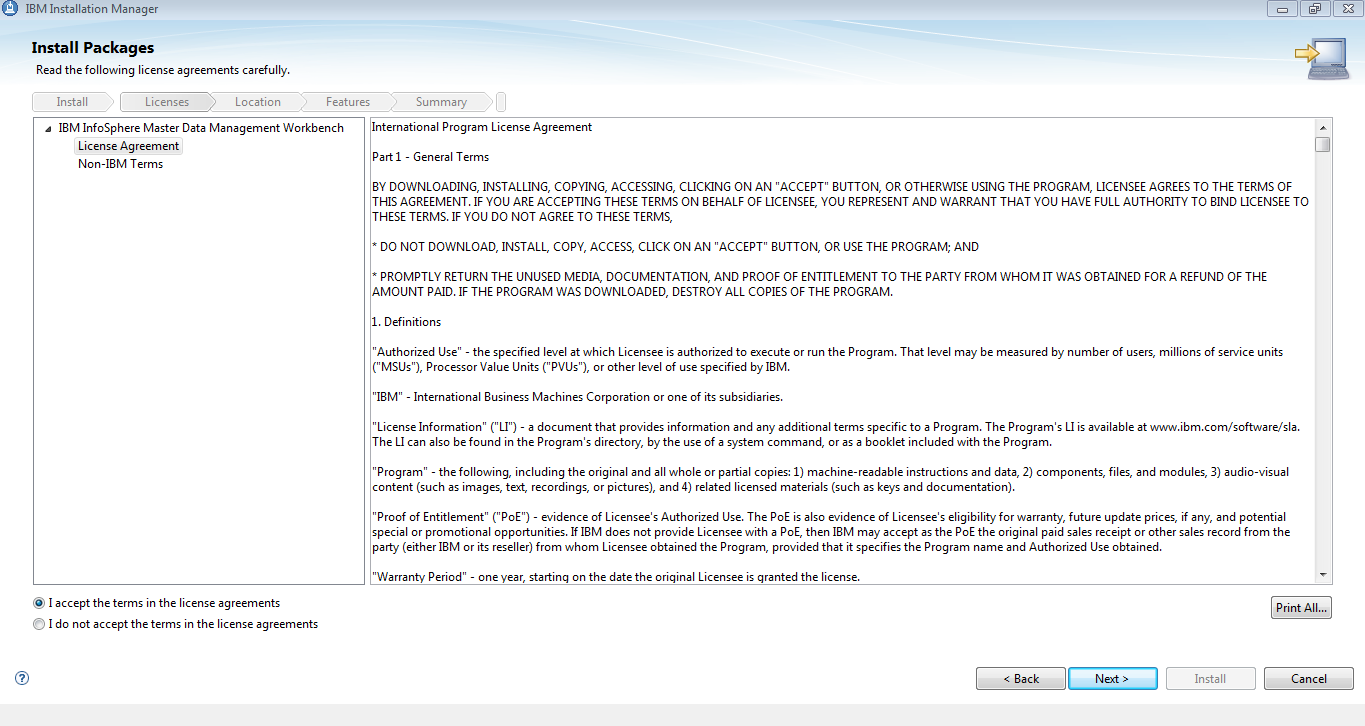

Accept terms

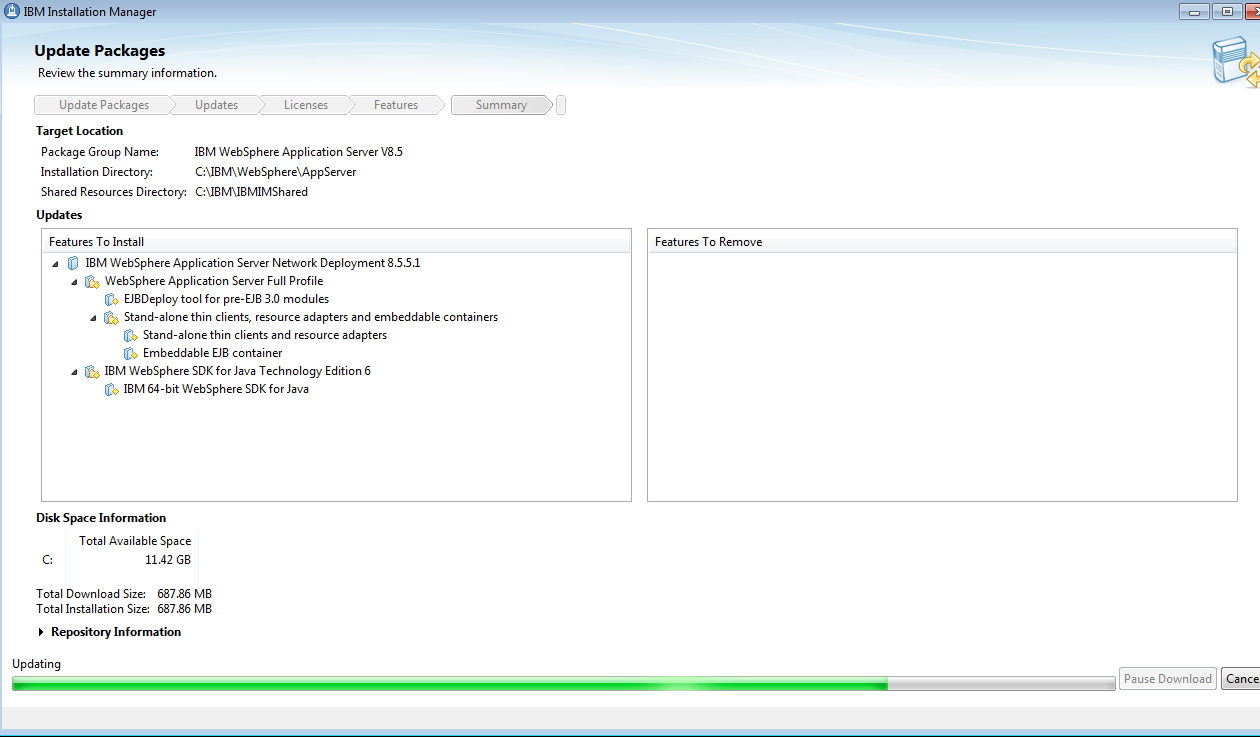

Update:




Follow the same steps for FP 8.5.5.02

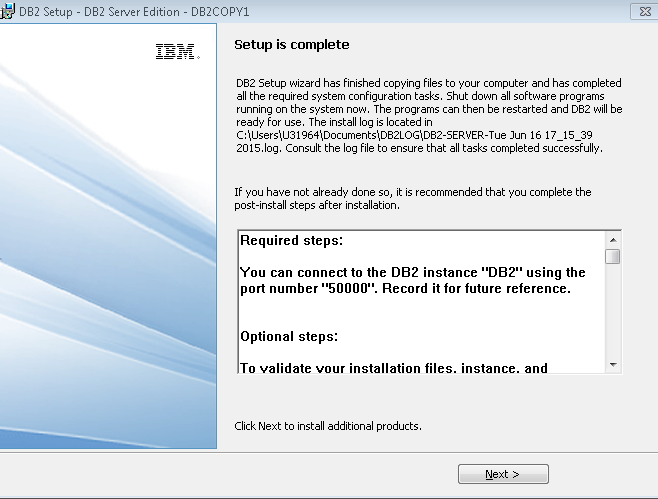

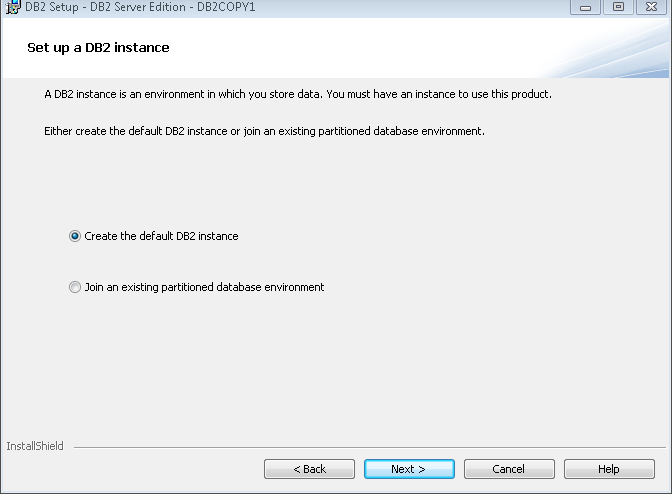

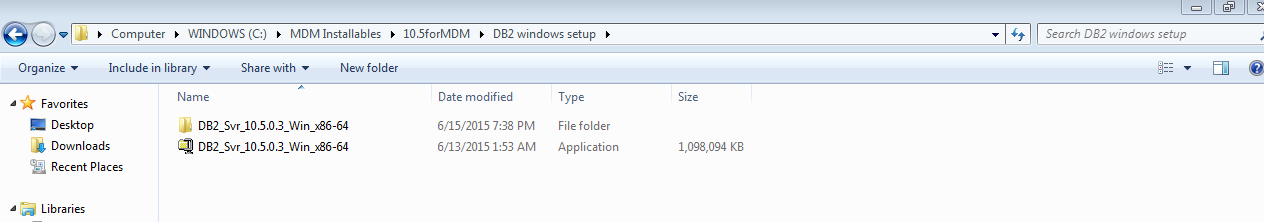

DB2 10.5 ESE Installation (Part Number)
IBM InfoSphere Master Data Management V11.4 - IBM DB2 Enterprise Server Edition V10.5 Multiplatform Multilingual eAssembly
CRTR2ML
Activation Kit:
IBM DB2 Enterprise Server Edition - Restricted Use - Quick Start and Activation V10.5.0.1 for Linux, UNIX and Windows Multilingual (CIPH4ML

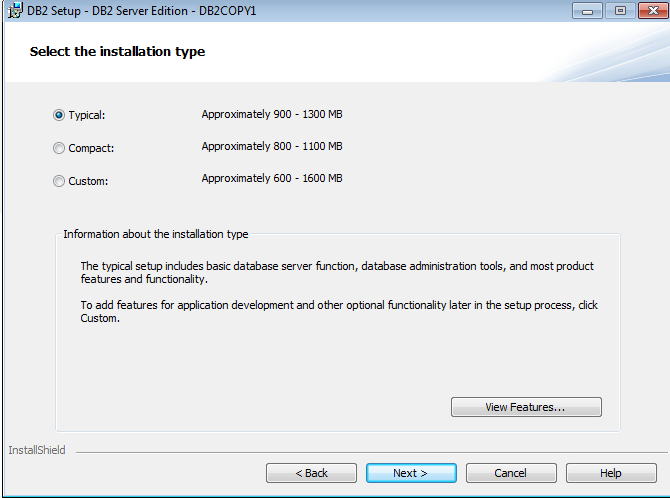

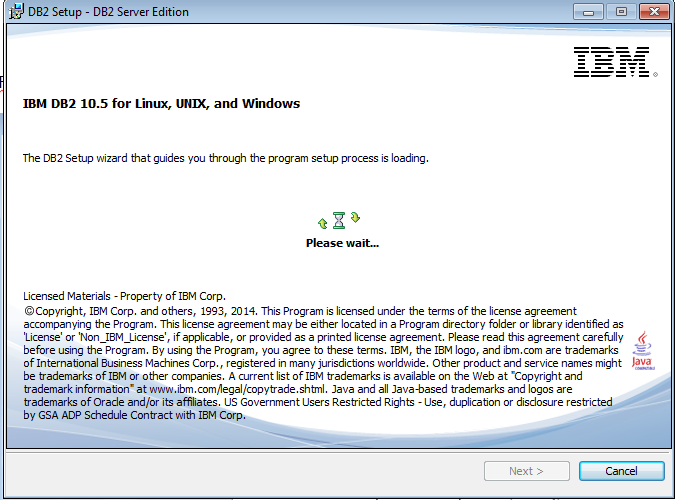

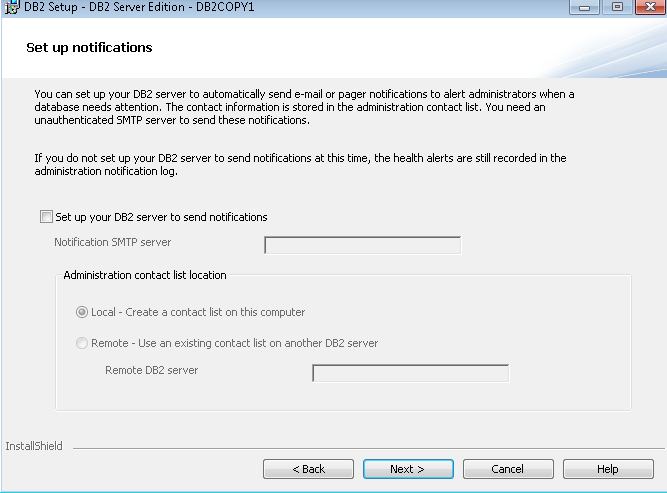

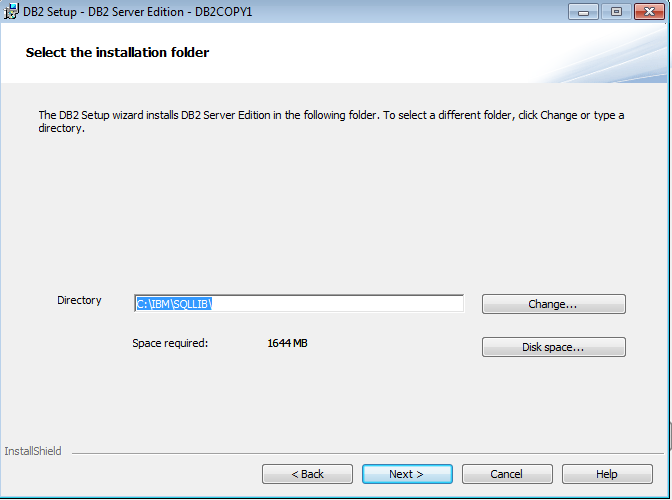

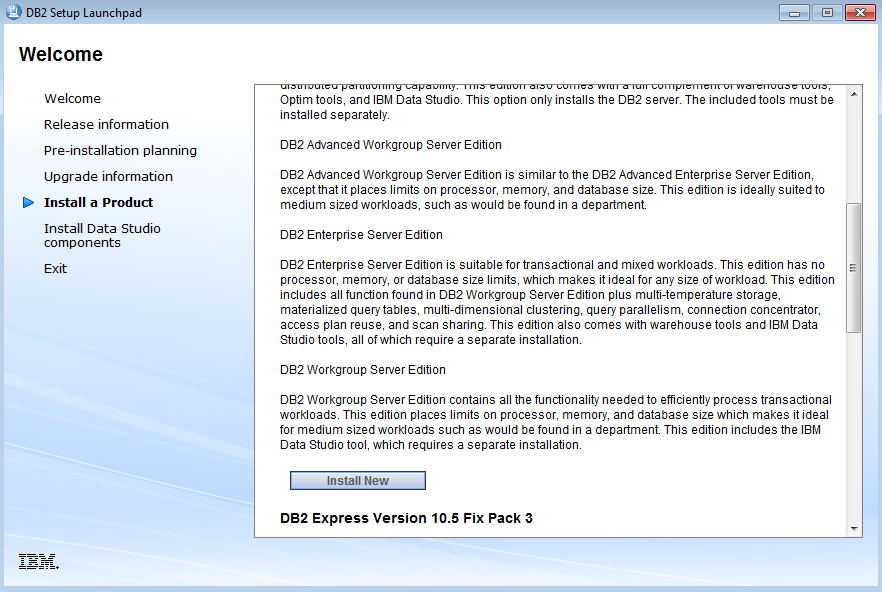

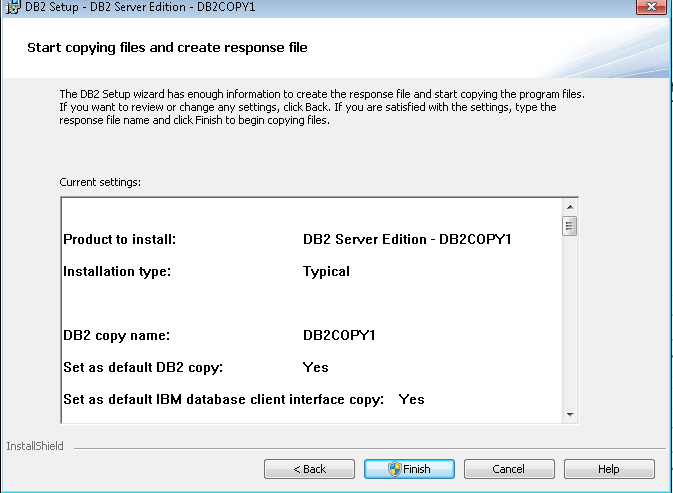

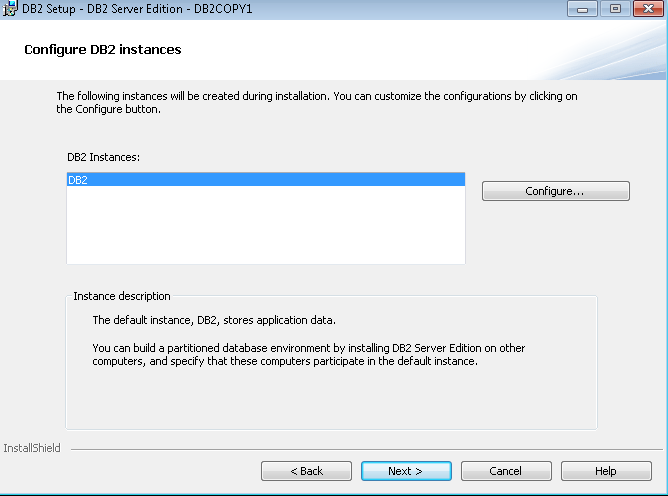

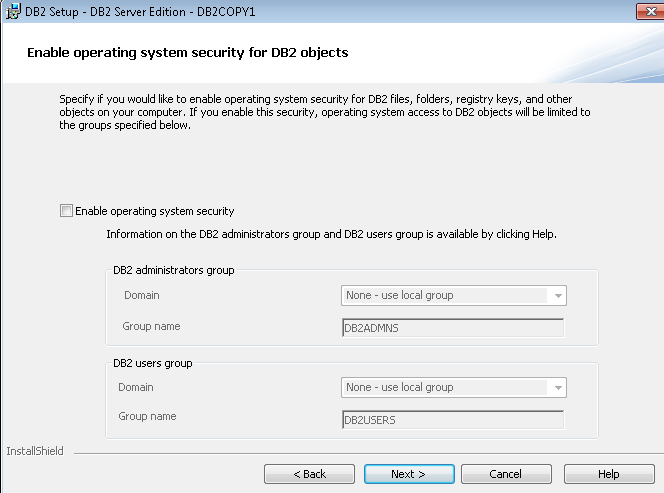

Risht click Setup->Run as administraftor














Use db2admin/db2admin




















Note:

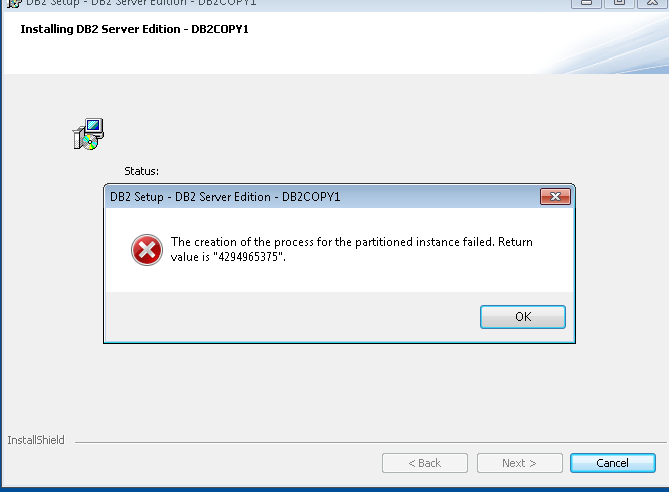

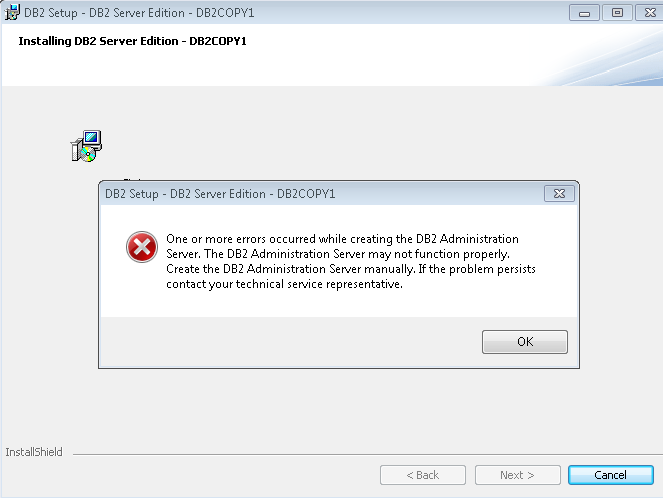

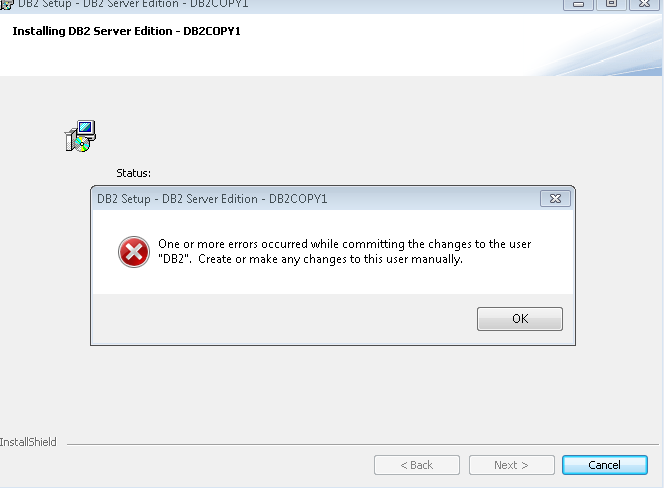

I ran the a few commands manually here because of the error I received.(You don’t have to )
It shouldn’t fail if you have proper Admin right.(My org gives only Elevated Rights ☹ )
Open Db2 Command window:
Type:
1)db2icrt db2inst1
2)db2systray
You will notice the green DB2 icon in your systray(Right click ->Start)


I created a sample db2 database from First Steps(will come as part of the installation) or try db2fs from command window.
Everything went fine(db created,I can query from command window etc), but when I connect from RAD to my DB, it throwed me a connection error:
From DB2 Command Window(bin):
db2 UPDATE DBM CFG USING SVCENAME 50000
db2set DB2COMM=TCPIP
db2stop force
db2start


From windows cmd verify :
netstat -na | find "50000"

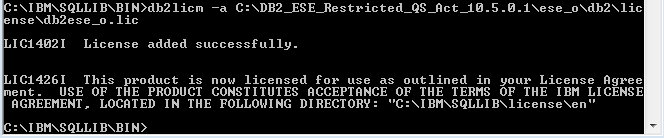

Applying the DB2 licence (DB2_ESE_Restricted_QS_Act_10.5.0.1.zip  )
Part Number: CIPH4ML

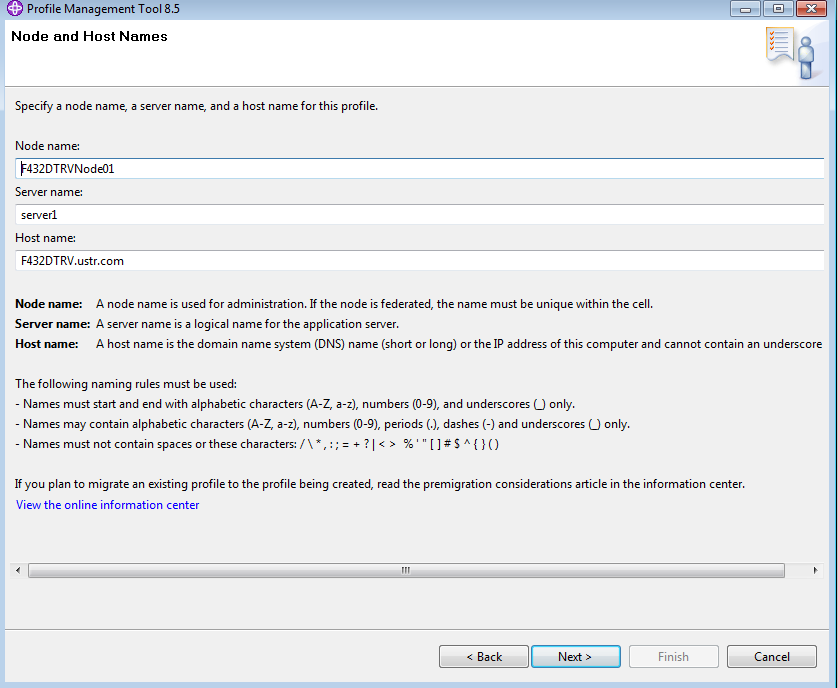

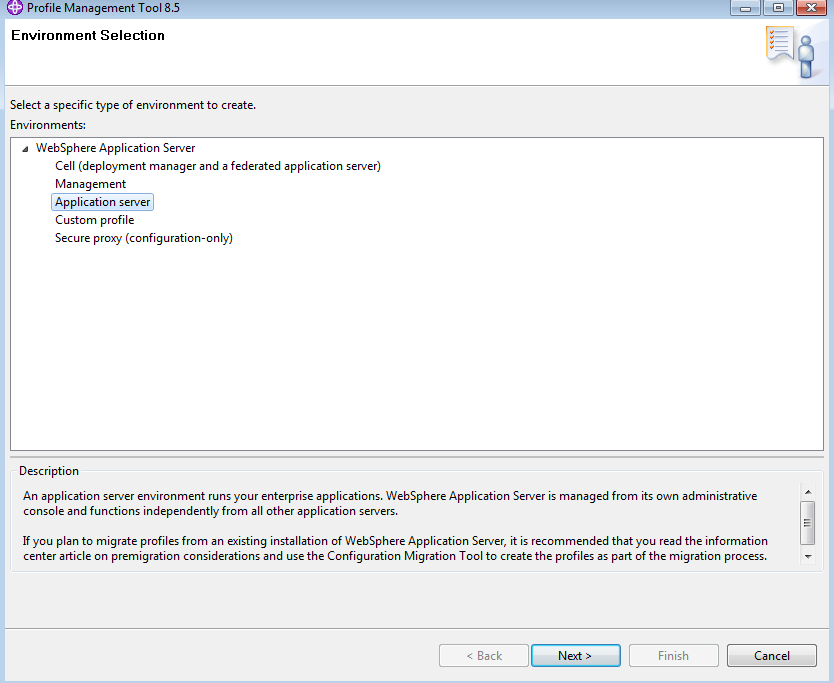

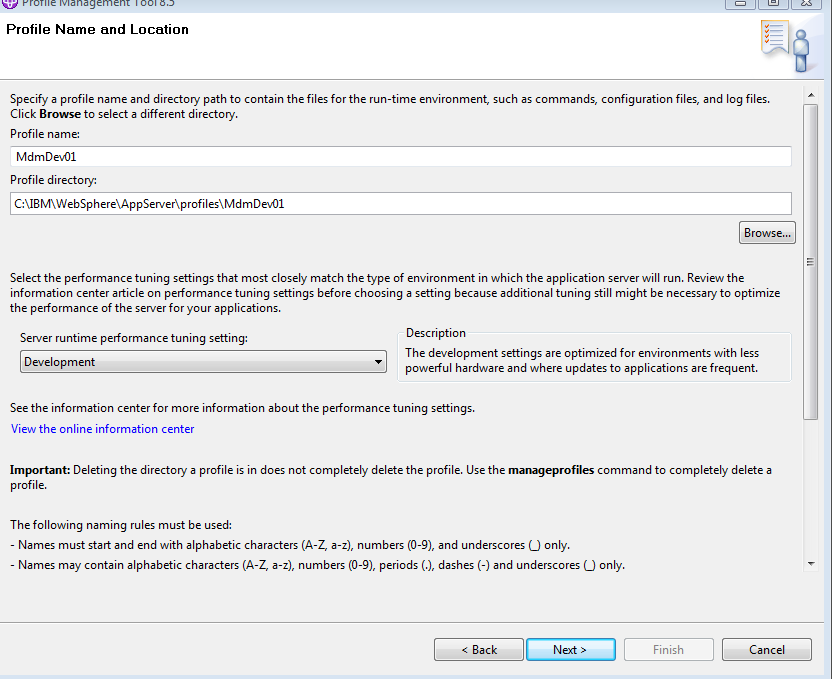

Creating and Configuring WAS Profile

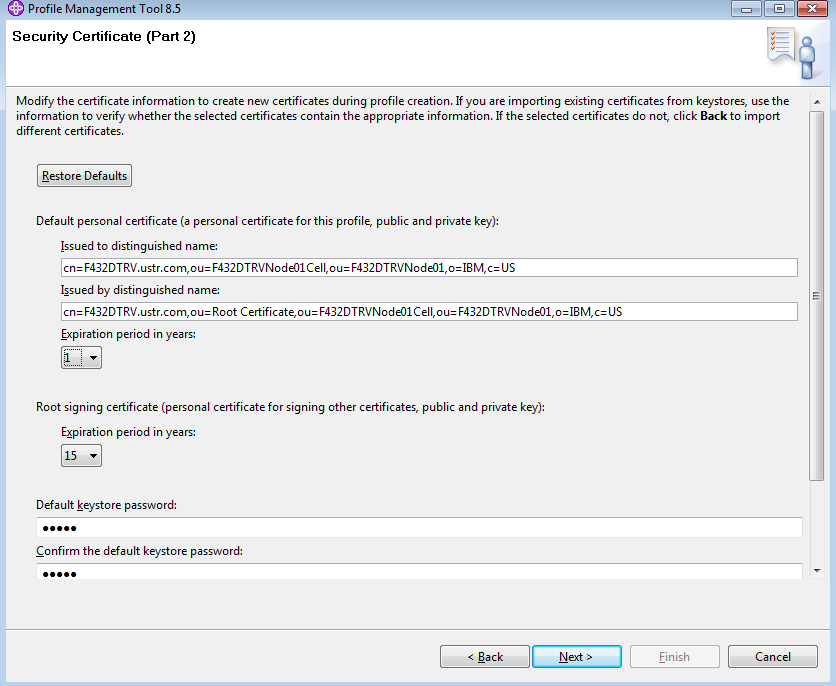

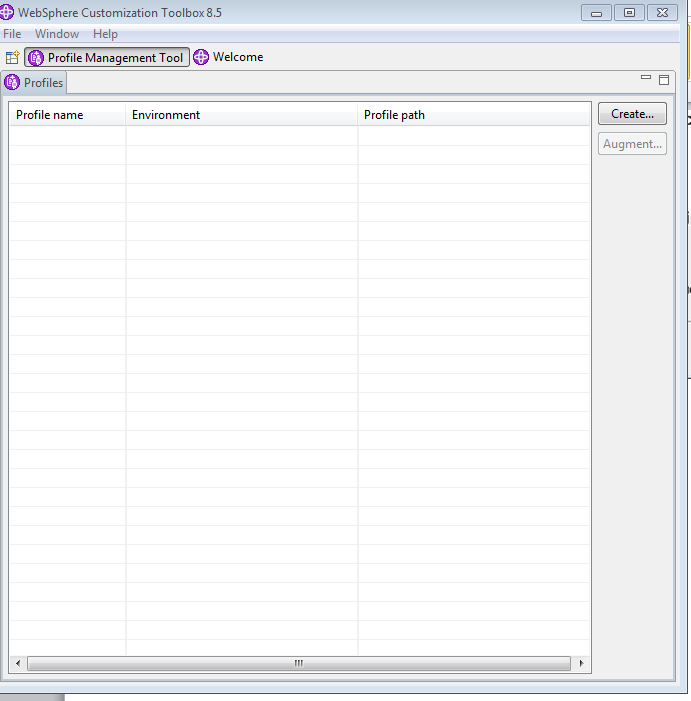

Open the PMT from Start->Type (Profile Management Tool)

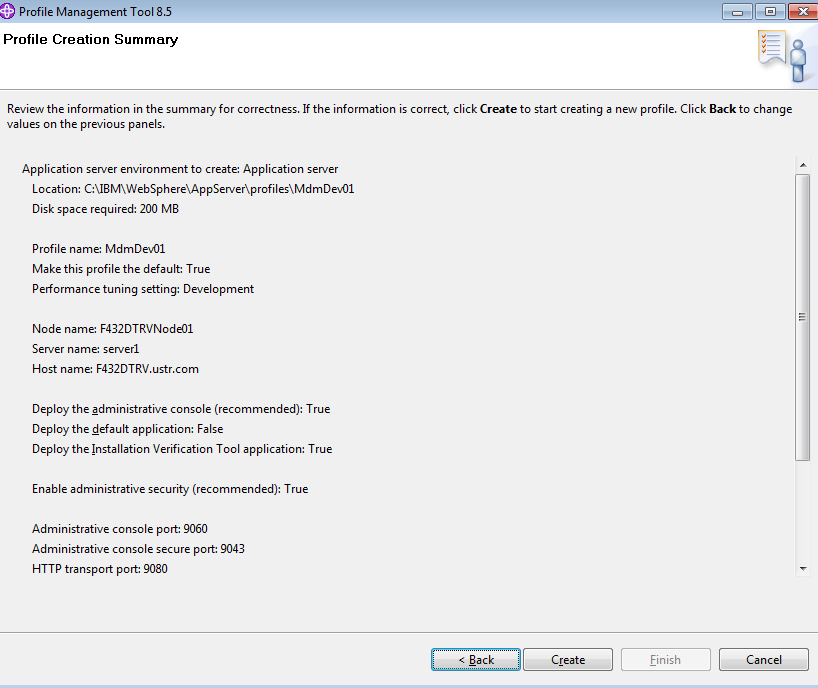

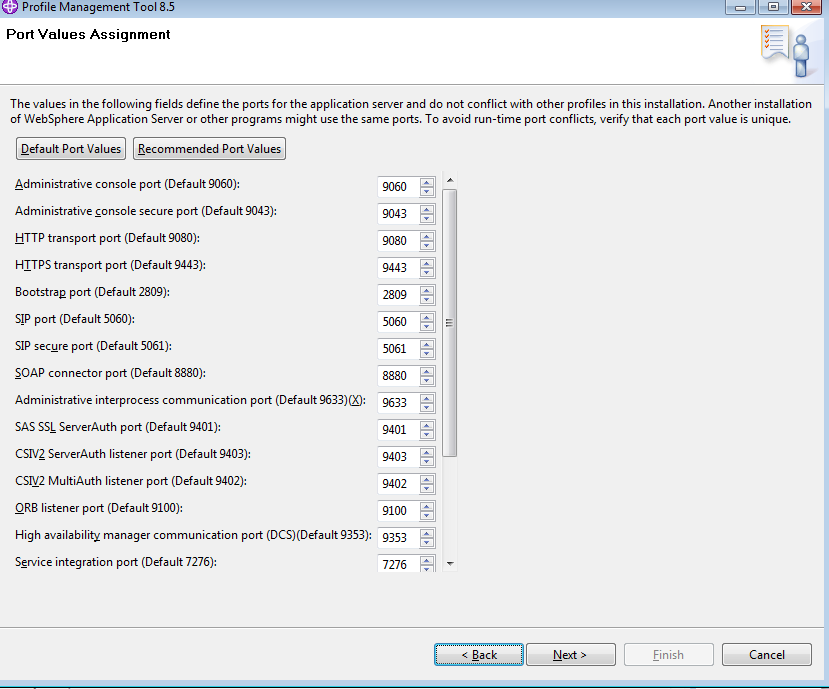

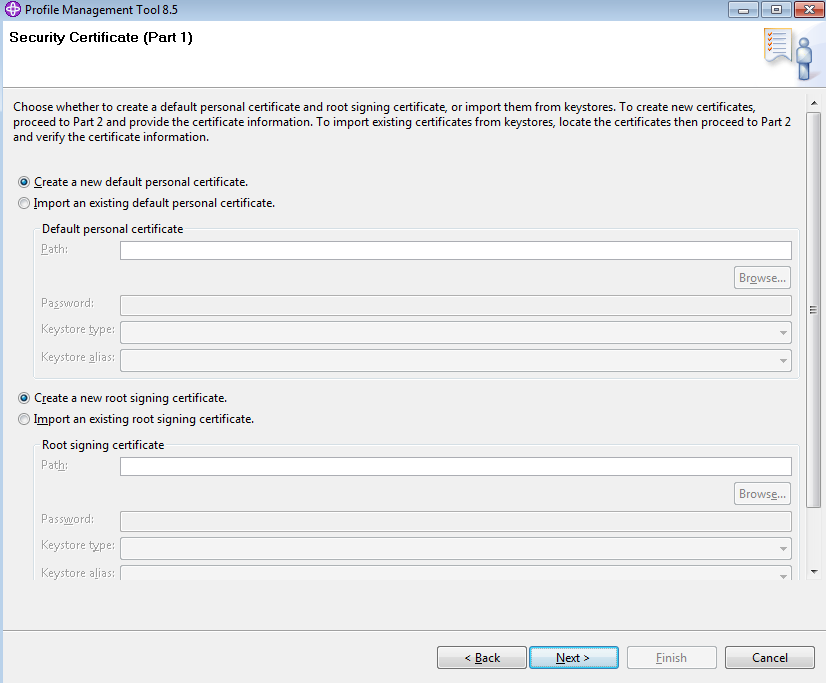

Click create :

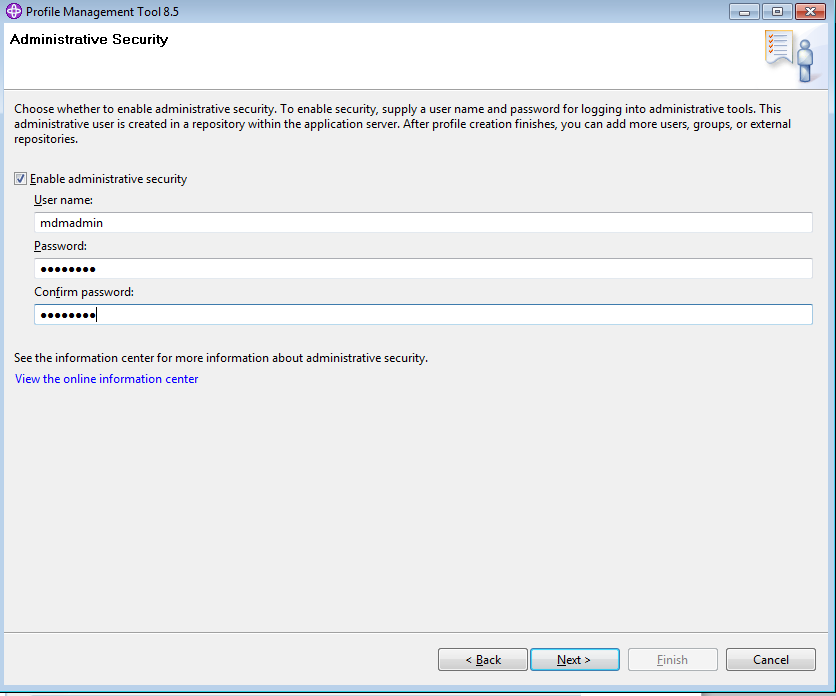

Use mdmadmin/mdmadmin

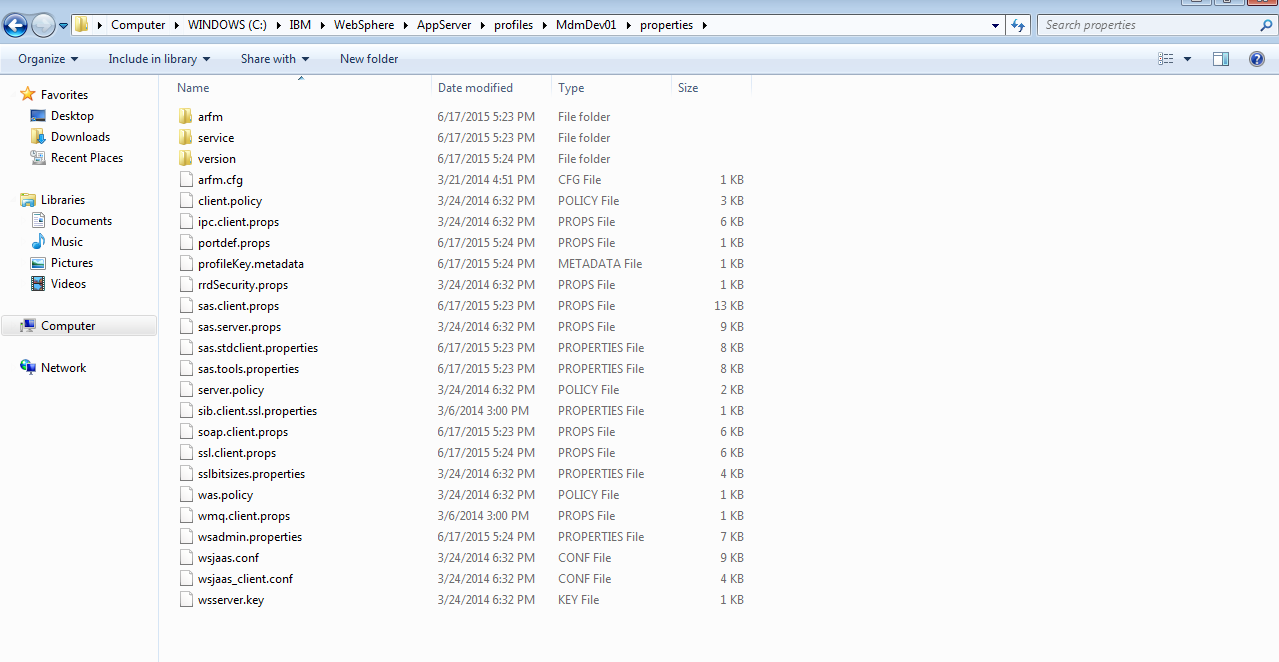

Go to :


Make the following in sas.client.props and soap.client.props.

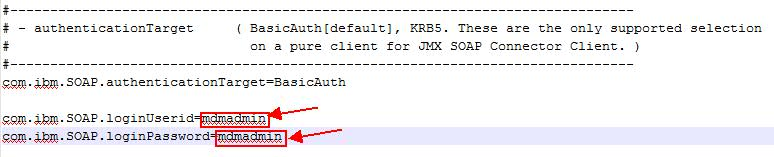

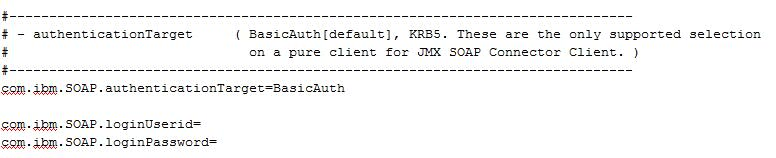

soap.client.props
Edit the proties with to provide Username and Password.
The above properties has to be changed as like following by providing mdmadmin for user name and password.

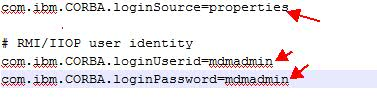

sas.client.props
Edit sas.client.props and change the three lines listed below. (loginSource=properties, userid, and password)




The above given propertis has to be changed like the following


Start the Application server


Once the server is started.
Start the Adminstrative Console.(login with mdmadmin/mdmadmin)

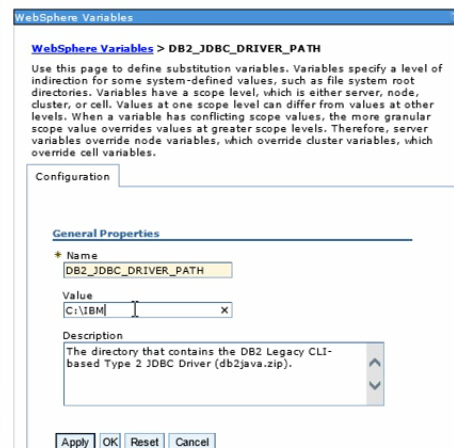

Click Environment->Websphere variables
Set JDBC_DRIVER_PATH (C:\IBM\SQLLIB) . Don’t give till SQLLIB


Select “EnvironmentsWebsphere variables” and set the value for DB2 JDBC Driver Path




Apply and Save.
Set the heap size values min as 1024 and max as 2048 in JVM (Java Virtual Machine)




Apply & save








Apply, Save directly to Master configuration.

MDM StartUp Toolkit

This provides the scripts required to create an MDM database.
StartUpToolKit should be available in the disk1


C:\MDM Installables\11.4\MDM_STD_ADV_11.4_ML_1\MDM\disk1\StartUpToolkit.


Edit SQL files

There are a couple of SQL files provided in the startup toolkit for creating an MDM database on DB2:
  • CoreData\Full\DB2\Standard\ddl\CreateDB.sql
  • CoreData\Full\DB2\Standard\ddl\CreateTS.sql
Both these files contain placeholders which need to be replaced with suitable values before use. These are the values I used:

Placeholder
Value

MDMDB

US

db2admin/U36001

TBS4K

TBS8K

TBS16K

INDEXSPACE1

LONGSPACE1

EMESPACE1

EMESPACE2

 Create database

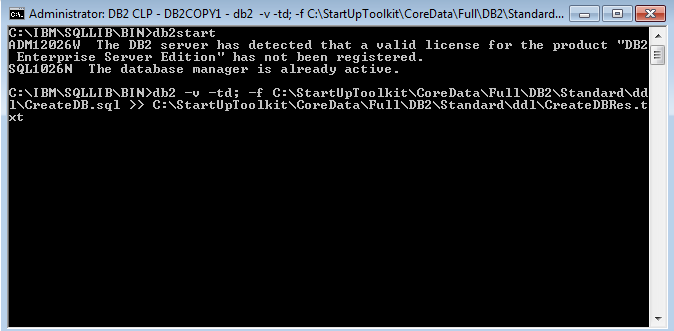

After editing the SQL files, I ran them using this command in a DB2 Command Window:
Note: I copied the StartUpToolkit folder to my C:\(just so that I can play around without touching the actual ones)
db2 -v -td; -f C:\StartUpToolkit\CoreData\Full\DB2\Standard\ddl\CreateDB.sql >> C:\StartUpToolkit\CoreData\Full\DB2\Standard\ddl\CreateDBRes.txt




Run the CreateTS.sql also.
db2 -v -td; -f C:\StartUpToolkit\CoreData\Full\DB2\Standard\ddl\CreateTS.sql >> C:\StartUpToolkit\CoreData\Full\DB2\Standard\ddl\CreateTSRes.txt
Verify the logs.
I received the following errors:


GRANT CREATETAB,BINDADD,CONNECT,CREATE_NOT_FENCED,IMPLICIT_SCHEMA,LOAD ON DATABASE TO USER U36001
DB21034E  The command was processed as an SQL statement because it was not a
valid Command Line Processor command.  During SQL processing it returned:
SQL0554N  An authorization ID cannot grant a privilege or authority to itself.
SQLSTATE=42502


But I think they are fine.

MDM Operational Server Installation



Now everything should be ready for a successful MDM install, however the operational server installer does not do many checks so there is still a chance that you could encounter problems. When problems do occur, the install will either roll back, requiring a reinstall, or keep going without reporting any issues until the install verification tests fail. This makes it difficult to track down problems so it's worth taking time to make sure everything is configured correctly before starting the install.

Manual pre-install checks

First I checked that DB2 was installed in a directory called SQLLIB using the db2level command. Next I checked that the required table spaces had all been created using the command below:
db2 -td; CONNECT TO MDMDB && db2 -td; SELECT VARCHAR(TS.TBSPACE,20) AS TABLESPACE, TS.PAGESIZE, VARCHAR(BP.BPNAME,20) AS BUFFERPOOL FROM SYSCAT.TABLESPACES TS, SYSCAT.BUFFERPOOLS BP WHERE TS.BUFFERPOOLID = BP.BUFFERPOOLID

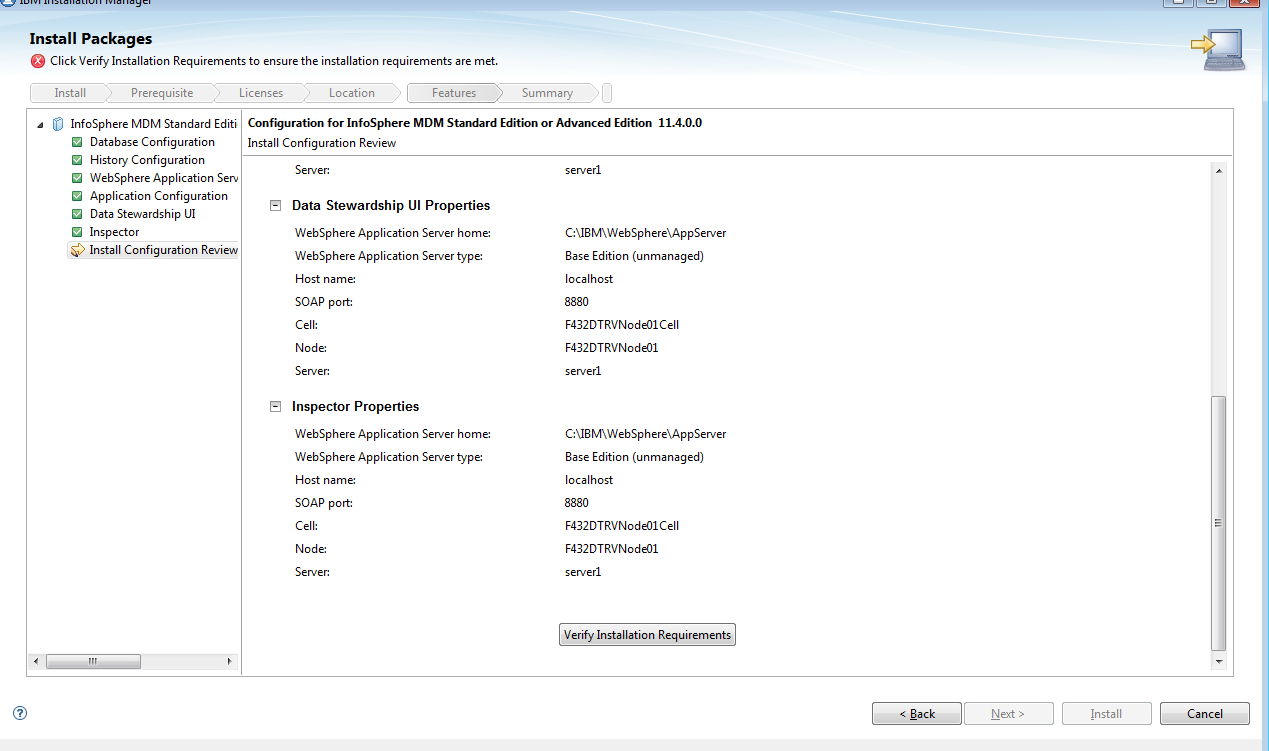

MDM 11.4 Install:


From Installation Manger
Click Install

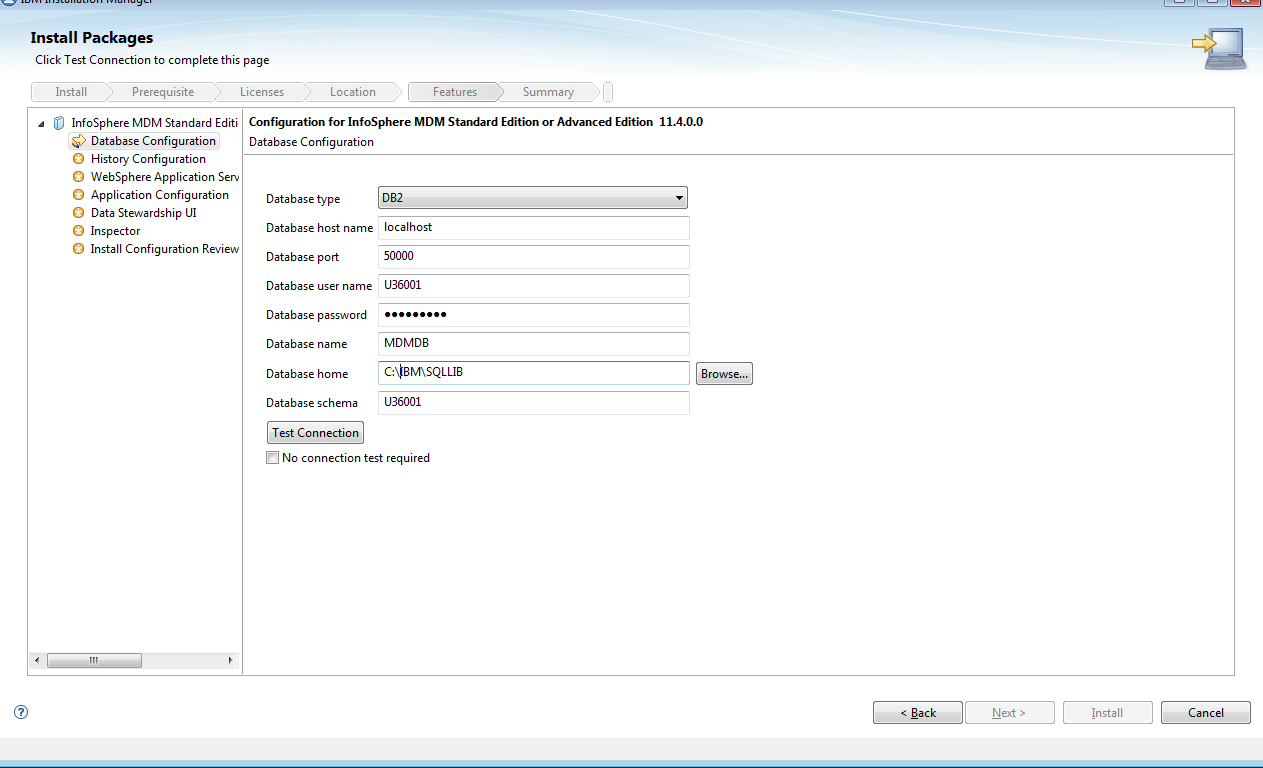

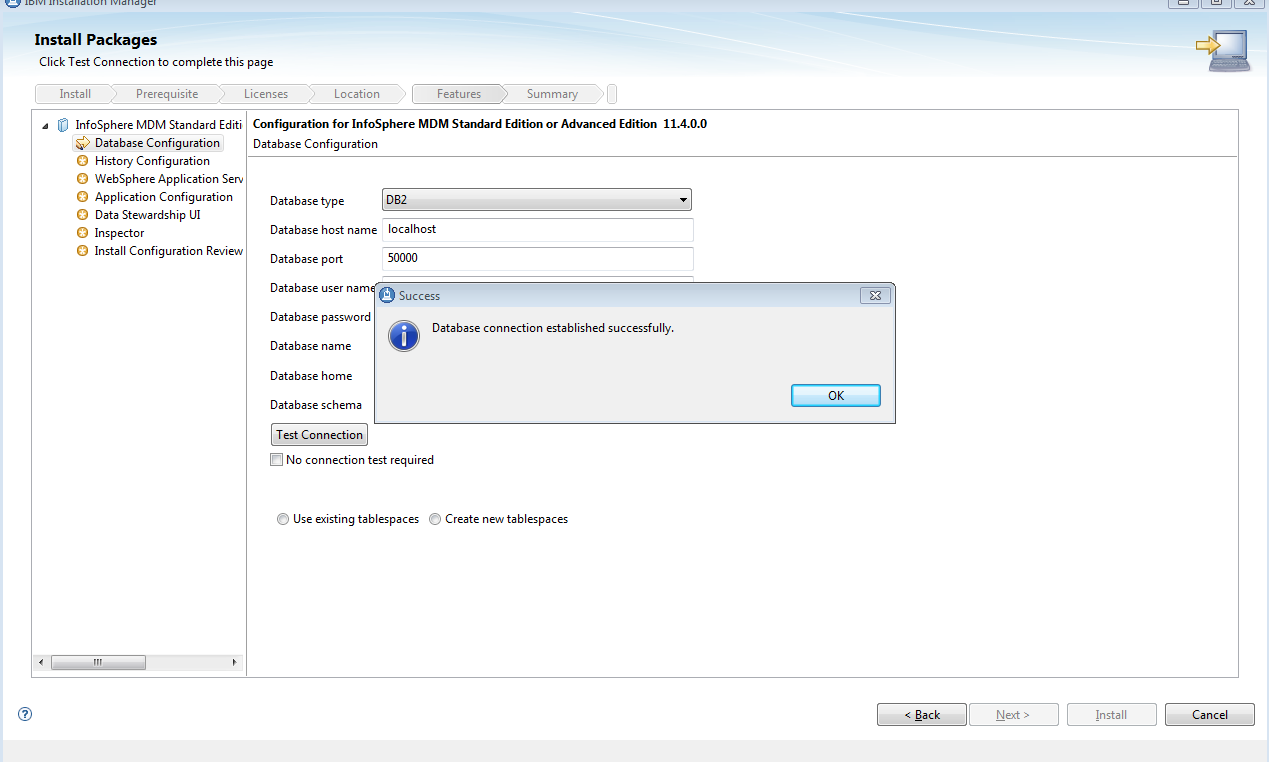

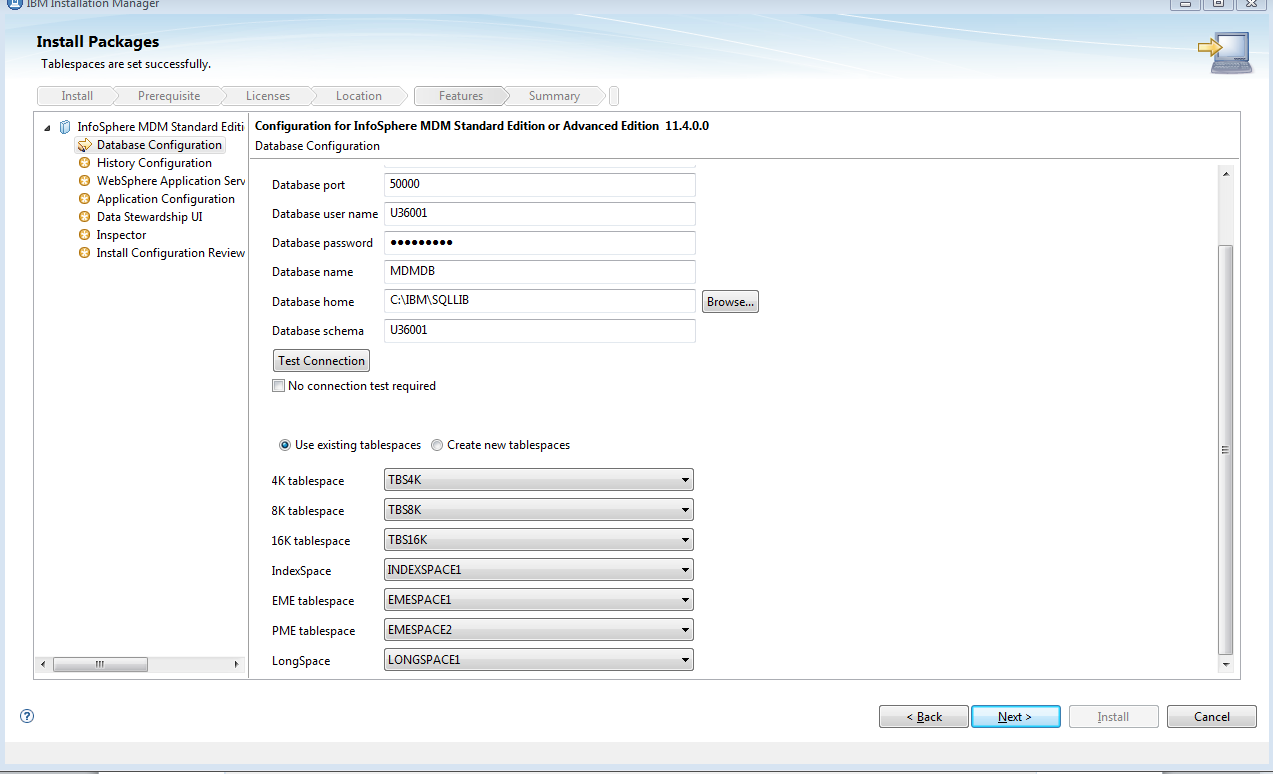

Click Test Connection.


Click Use Existing Table space (as we created it manually with the Startup Toolkit)

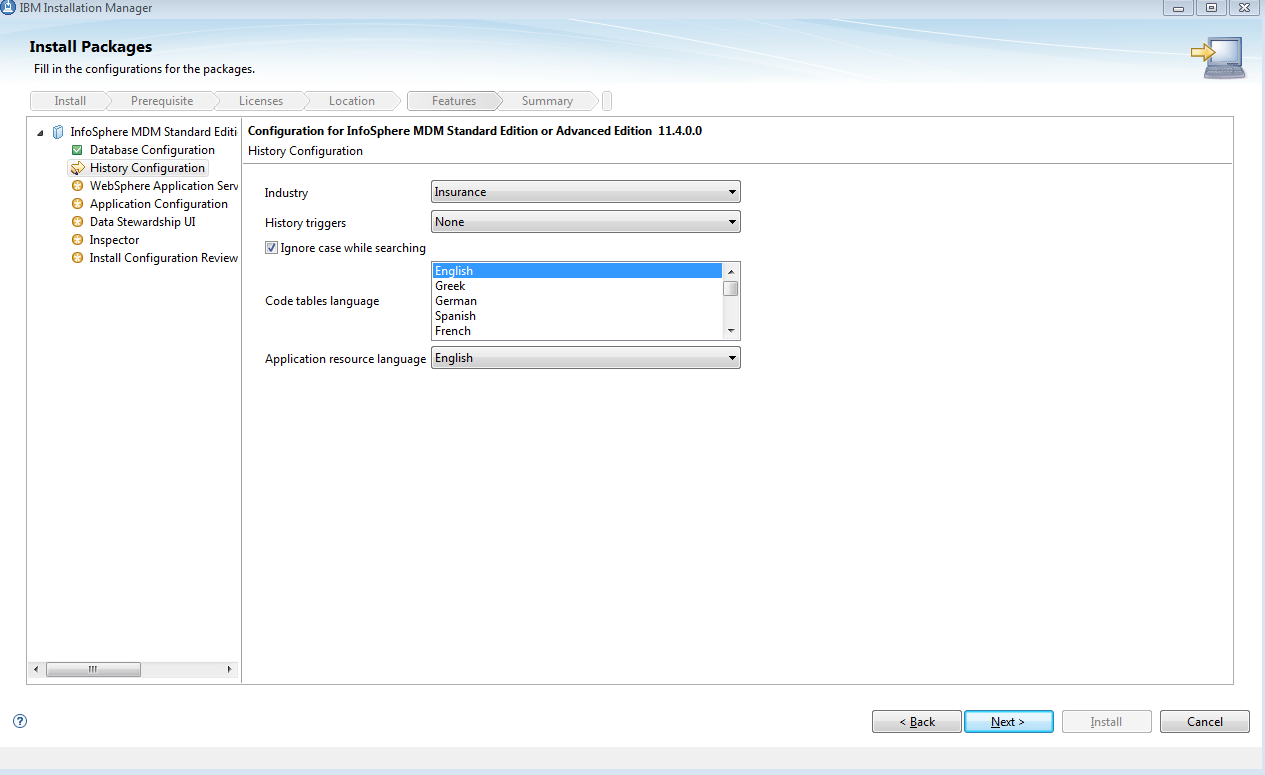

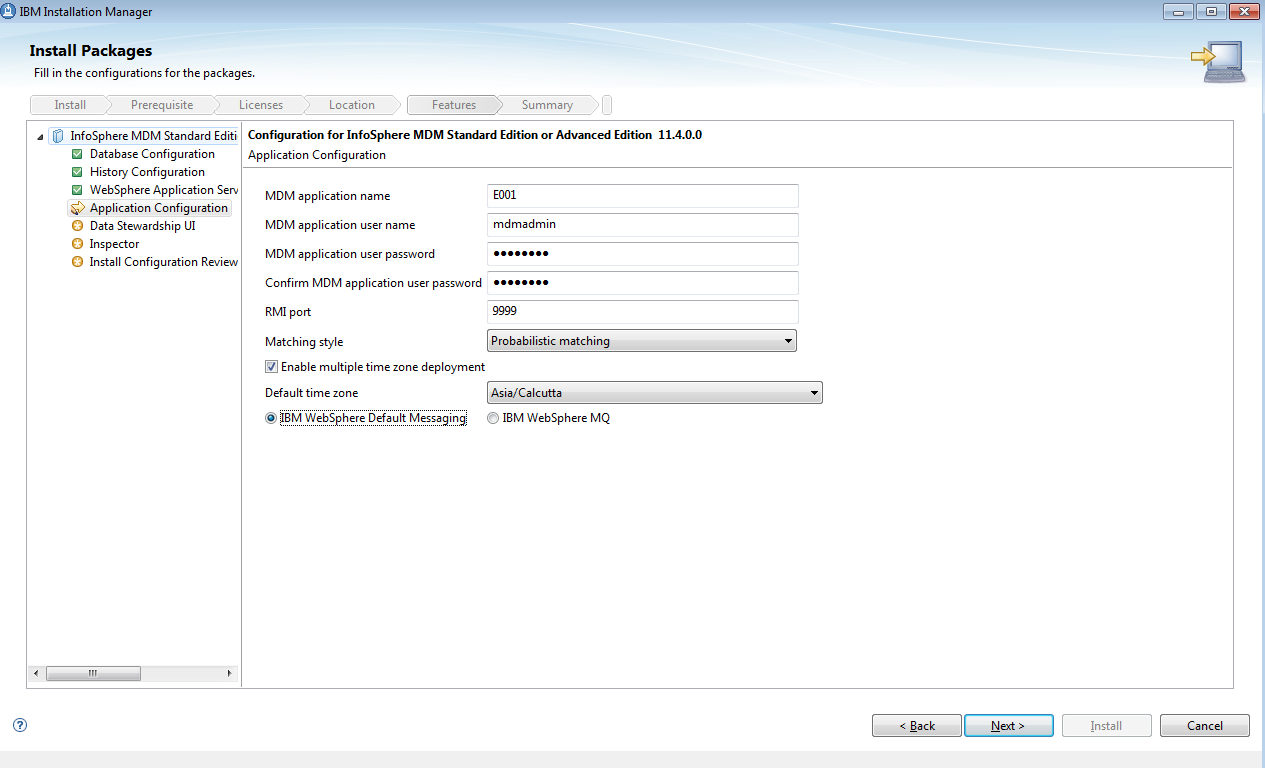

Select your Industry

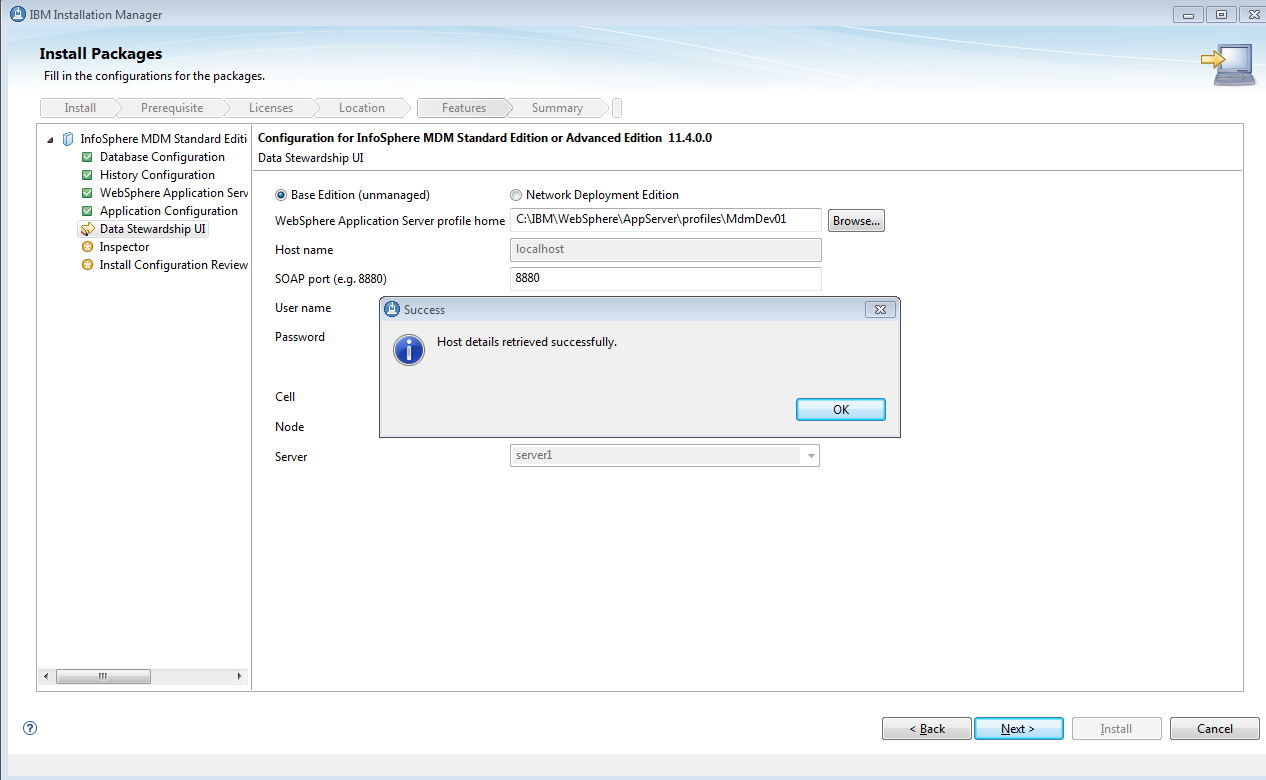

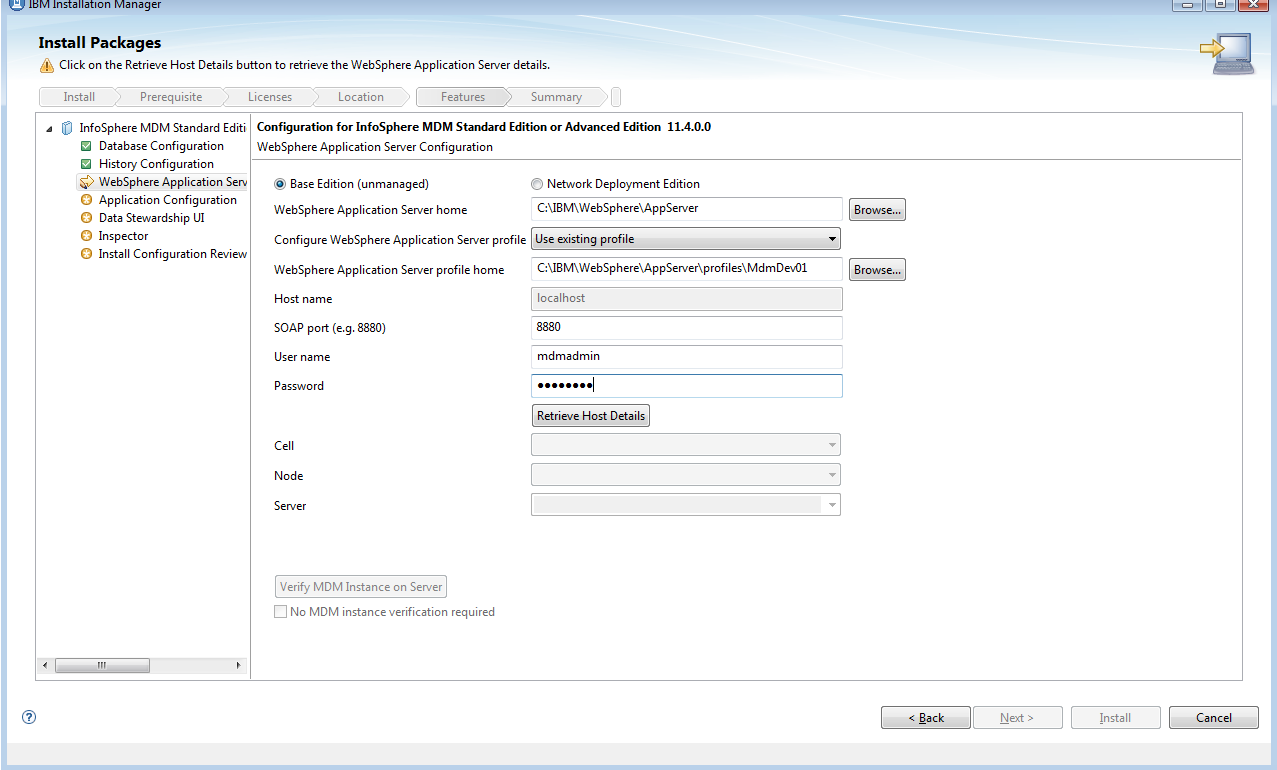

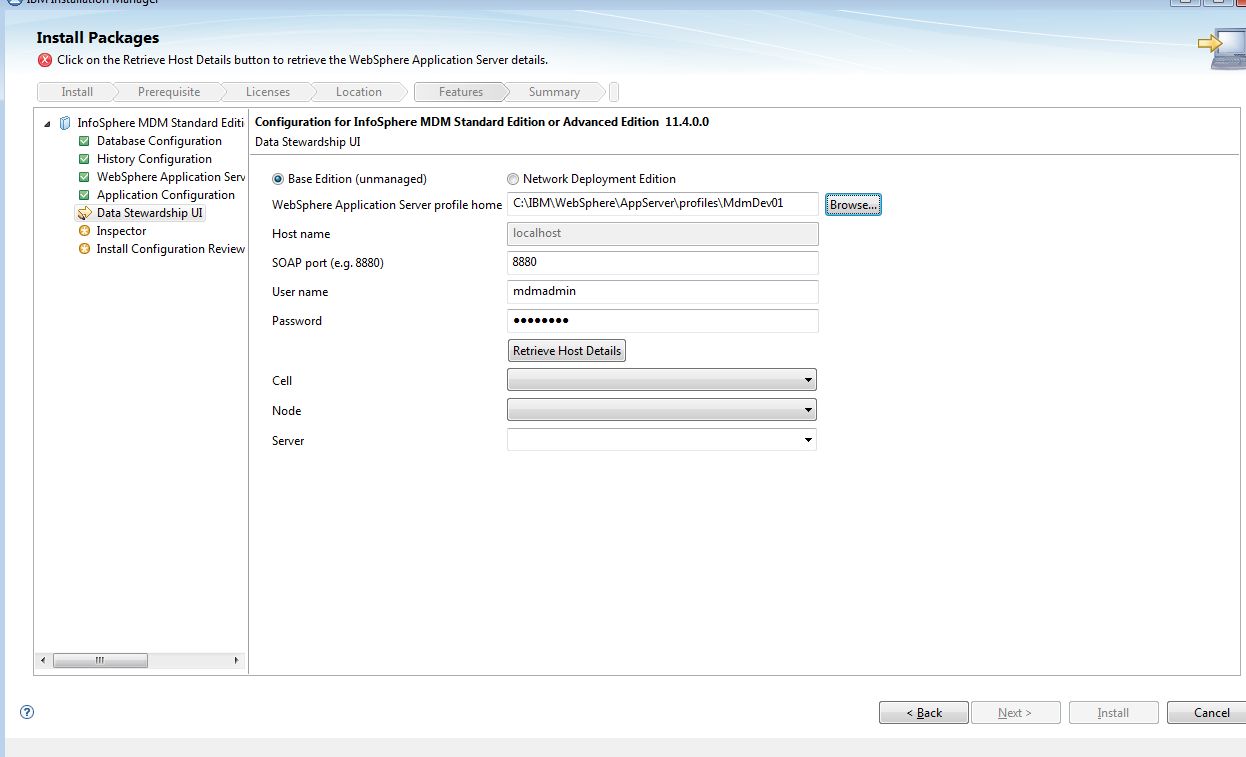

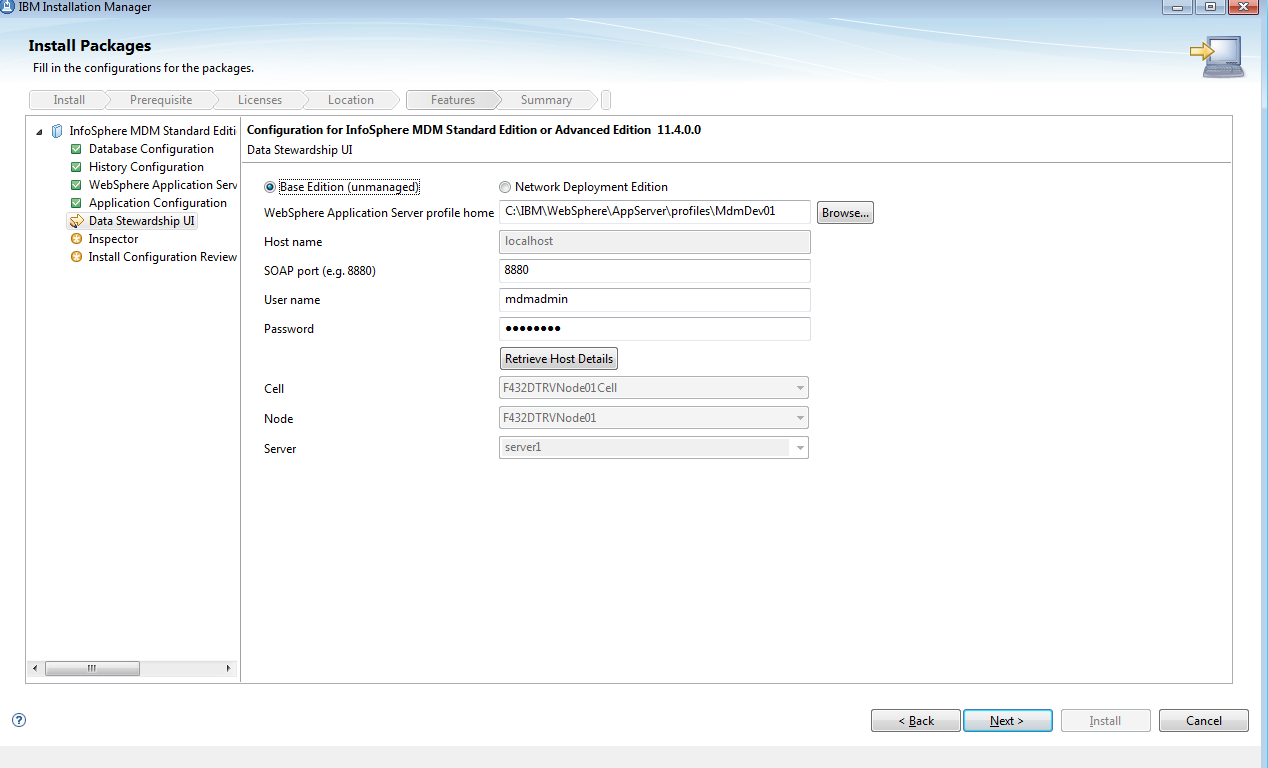

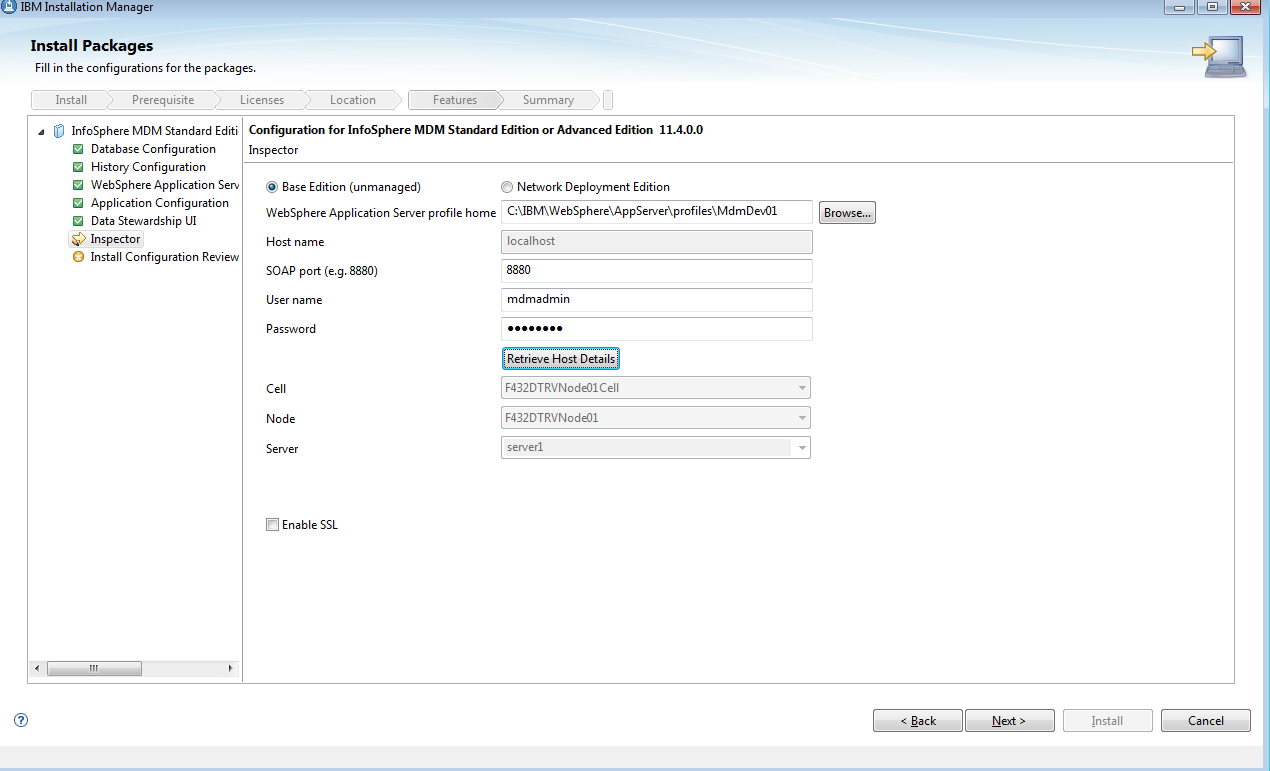

Click Retreive

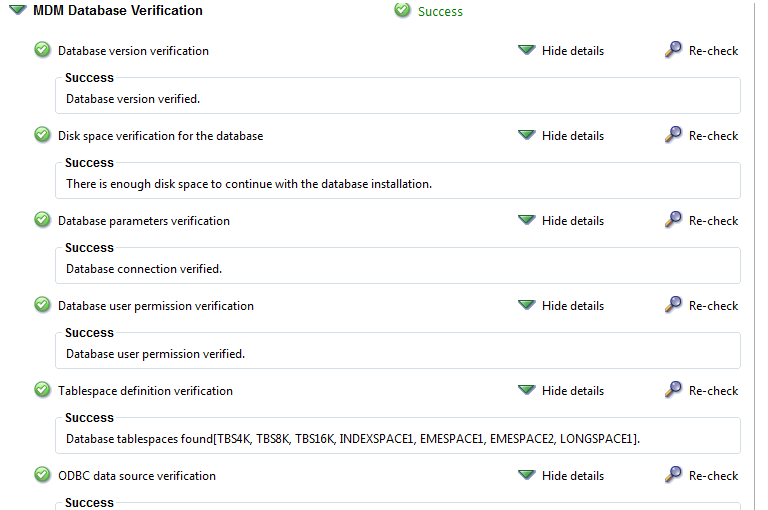

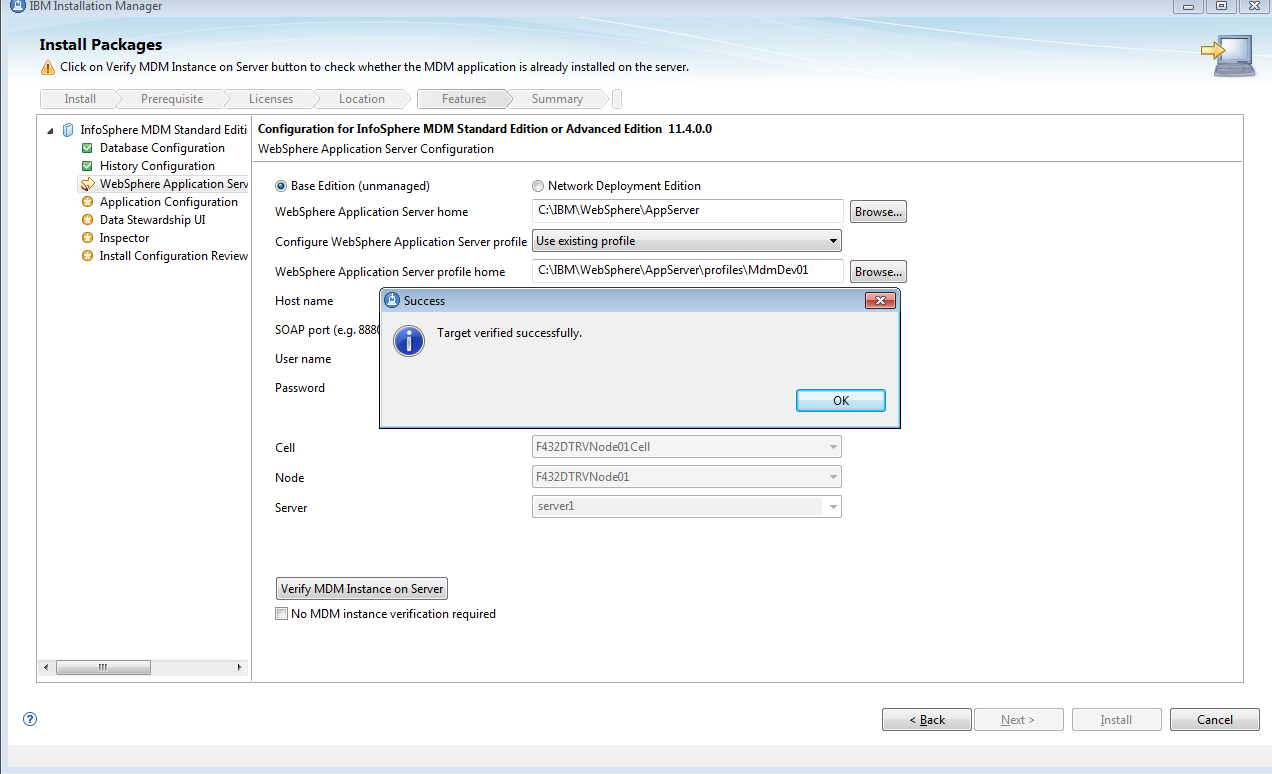

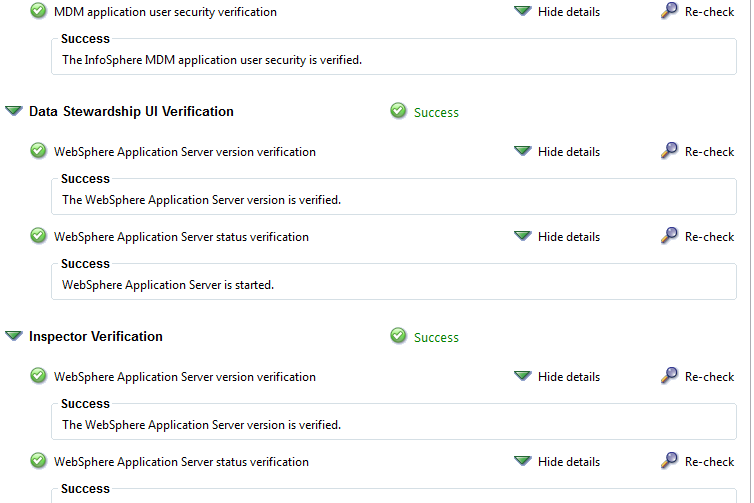

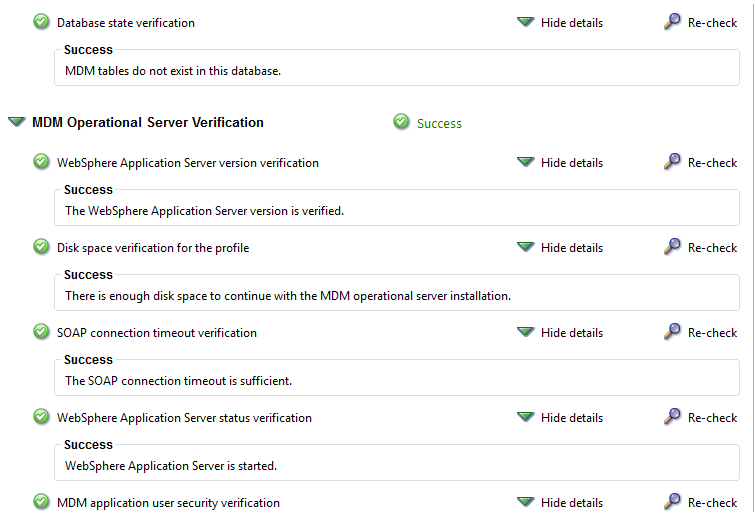

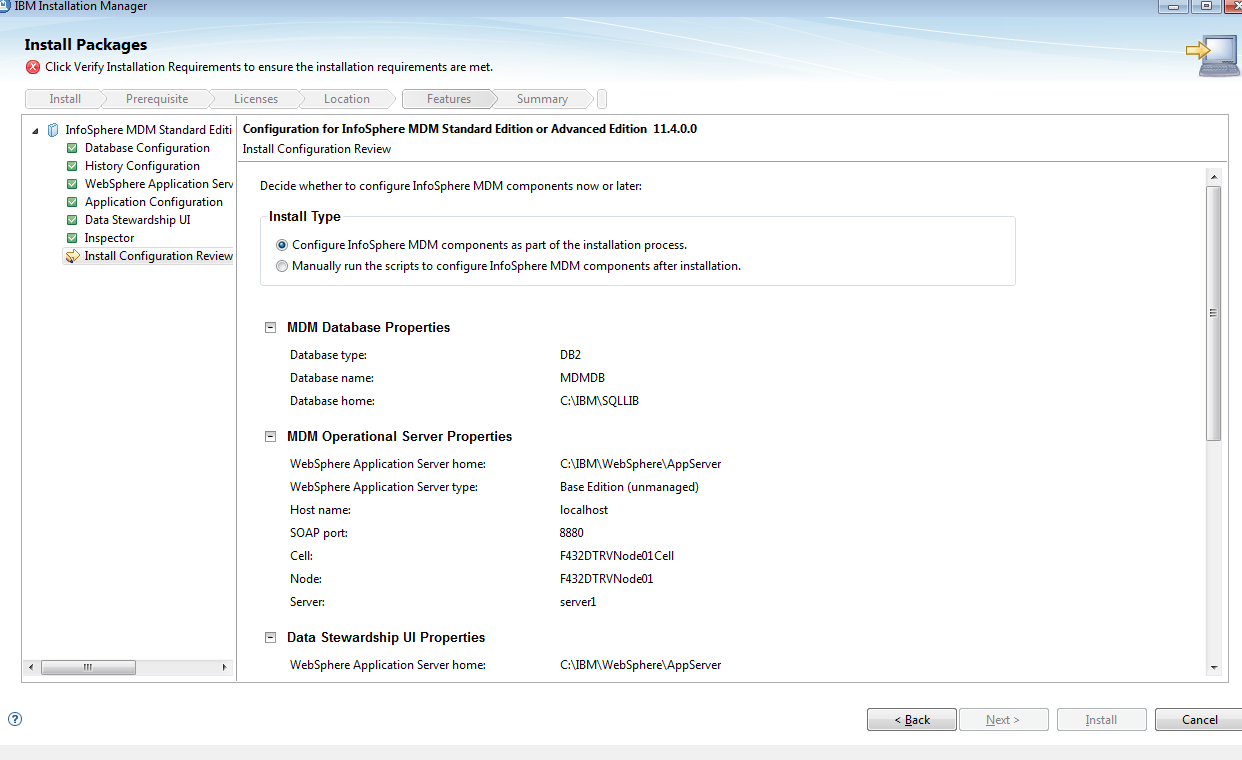

Click Verify
















Click Verify

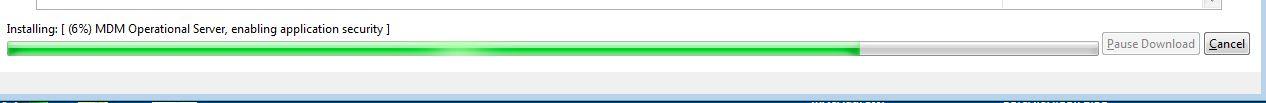

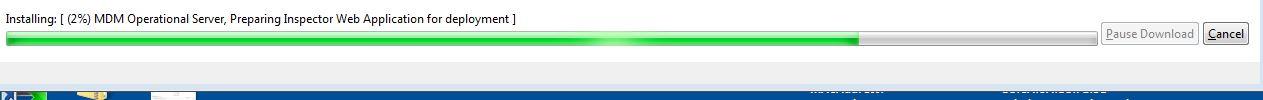

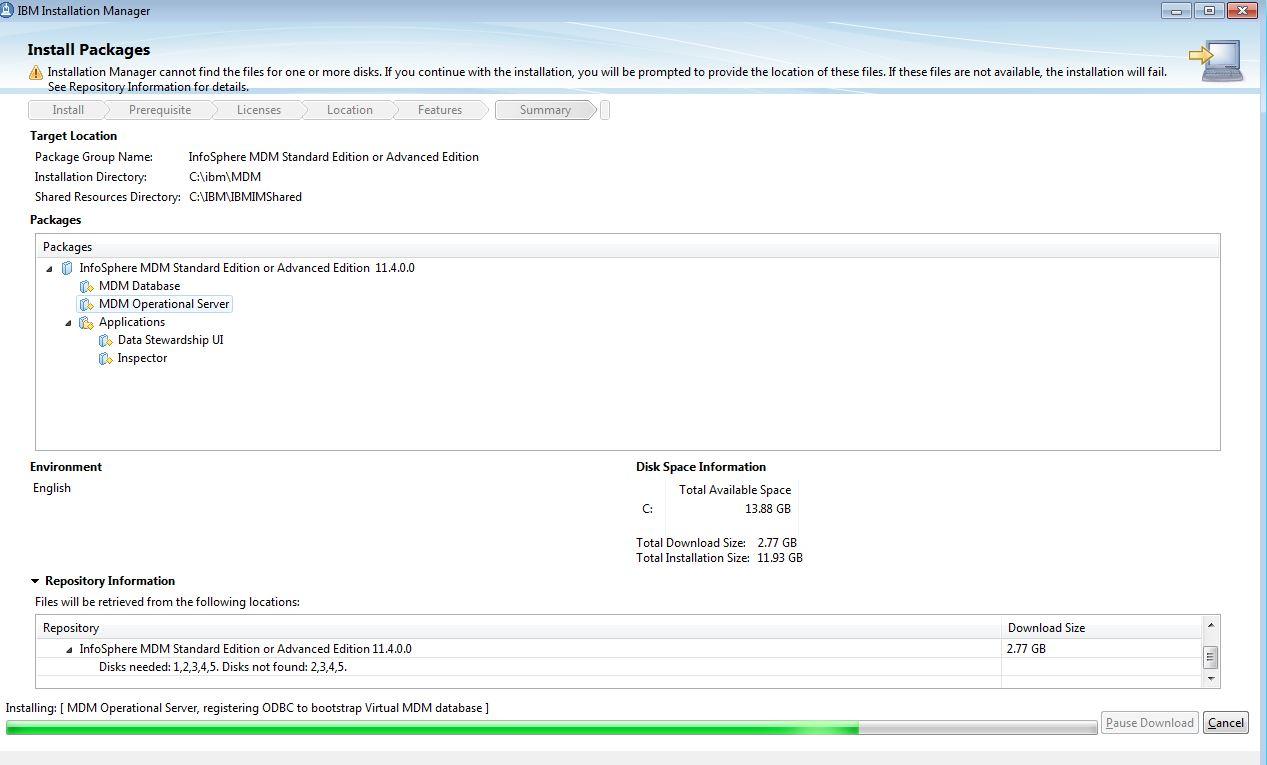

Go ahead and Install











Verify the IVT response xmls.
Verify the entries in APPSOFTWARE,APPDEPLOYMENT tables.
I hope this gives you some basic idea on the installation of IBM MDM v11.4
